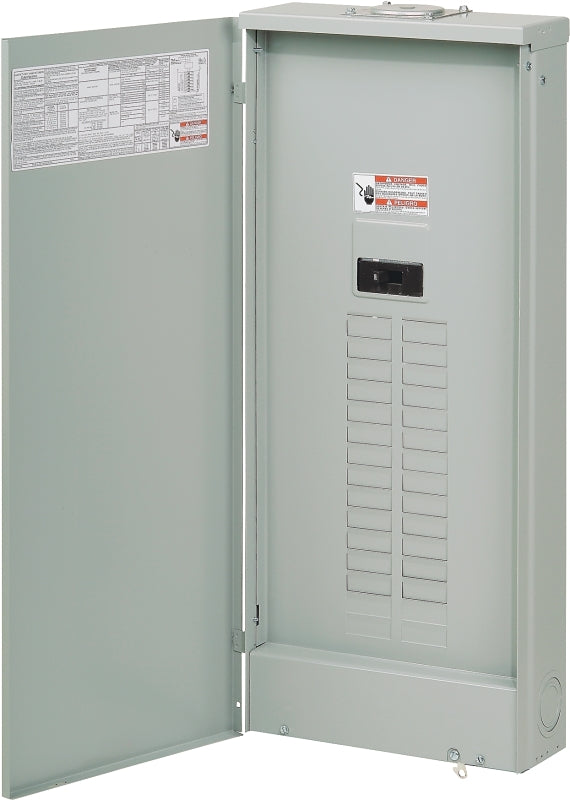

LOADCNTR MAIN BRKR 30SPS 200A

Rainproof galvanized steel enclosure. Single phase, 3 wire, insulated/bonded neutral, 30 (1") spaces, 40 poles, 120/240 volt AC. Main breaker type BW at 25,000 AIC. Furnished with hub closure plates, hubs and ground bar kit (necessary for sub-feeding) sold separately. Tin plated aluminum bus bar. Twin neutral with non-removable cross bus connecting them. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #2 - 300 kcmil wire range. Electrostatic powder coat, baked urethane painted. Rotate 180 degrees for bottom feed; orientation of main breaker handle consistent with NEC 240-81 requirements because it operates horizontally. 14-5/16" x 34-1/8" x 5-3/16". UL Listed file E52977.

Unit: EA

MPN: BRP30B200R

UPC: 786689059347

• Breaker/Load Center Type: Plug-On Neutral
• Bus Bar Material: Aluminum
• Bus Bar Rating: 200 A
• Buss Bar Material: Aluminum
• Cable Size: 2/0 AWG
• Current Rating: 200 A
• Enclosure Type: NEMA 3R
• Includes: Cover
• Interrupt Rating: 10 kA
• Mounting Type: Flush Surface
• Number of Circuits: 60
• Number of Phases: 1
• Number of Poles: 40
• Number Of Spaces: 30
• Temperature Rating: 60/75 deg C
• Voltage Rating: 120/240 V
