Model Number: 1597TRW3PKCC4 - UPC : 785007049176

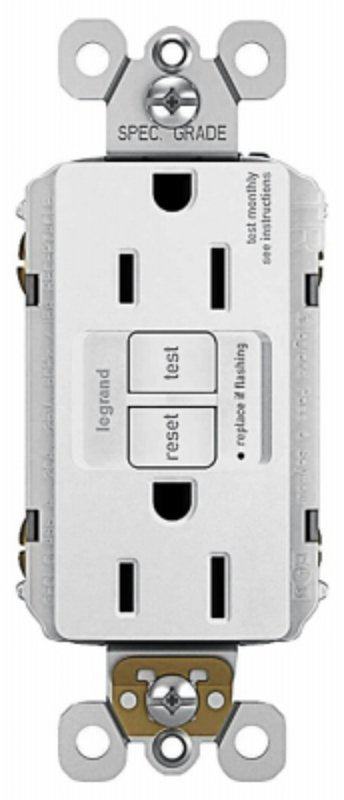

Legrand radiant Series 1597TRW3PKCC4 GFCI Duplex Receptacle, Nylon, White, 2-Pole, 3-Wire, 125 VAC, NEMA: 5-15R
Get special pricing! Apply for a business account today.
Apply NowLegrand radiant Series 1597TRW3PKCC4 GFCI Duplex Receptacle, Nylon, White, 2-Pole, 3-Wire, 125 VAC, NEMA: 5-15R is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Legrand radiant Series 1597TRW3PKCC4 GFCI Duplex Receptacle, Nylon, White, 2-Pole, 3-Wire, 125 VAC, NEMA: 5-15R is backordered and will ship as soon as it is back in stock.
Features
- New external back wire pressure plates
- New posted terminal screws for faster installation
- Conducts an automatic test every 3 s, ensuring it's always ready to protect, If the device fails the test, the trip indicator light red LED flashes to signal that the GFCI should be replaced
- Equipped with proven SafeLock protection feature, if critical components are damaged and protection is lost, power to the receptacle is disconnected
- Patented shutter system helps prevent improper insertion of foreign objects
- Feed-thru wiring configuration allows GFCI to protect downstream receptacles
- Prevents line-load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
- Tamper-resistant construction
Description
Description
Unit: EA
UPC: 785007049176
Model Number: 1597TRW3PKCC4
Additional Information
Additional Information
- Color: White
- Current Rating: 15 A
- Dimensions: 1.62 in W x 1.13 in D x 4.19 in H
- Frequency Rating: 60 Hz
- Material: Nylon
- NEMA Configuration: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -35 to 66 deg C
- Voltage Rating: 125 VAC
- Wire Size: 14 to 10 AWG
- Wiring Type: Back Side
