Pass & Seymour/Legrand  |  Our Item #: MORG9876244

Model Number: PS520CCLBCCV4 - UPC : 785007256451

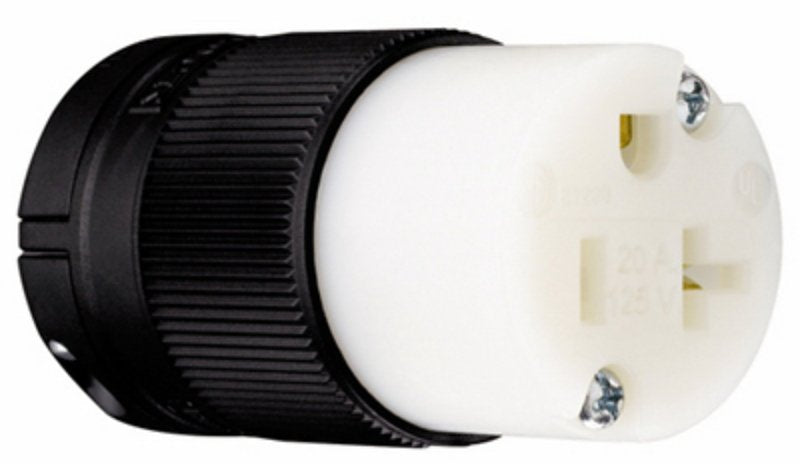

Legrand Camp-Lock PS520CCLBCCV4 Electrical Connector, 2 -Pole, 20 A, 125 V, NEMA: NEMA 5-20R, Black/White

Get special pricing! Apply for a business account today.

Apply Now
$17.31 $19.99
Shipping calculated at checkout.
13% off
New arrival

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Self-centering cord grip helps speed assembly
  • Removable inserts accommodate the widest possible range of cable diameters
  • Rugged nylon housing and backbody withstand chemicals, heat, wear and impact
  • Color-coded levers enable terminal identification at a glance and reduce the chance of wiring errors
  • Speedy, patented cam-lever termination provides solid, dependable connections
  • Molded-in guide shows correct wire stripping length
  • U-drive combination slot/crosshead screws ensure easy assembly
  • Long, deep channels guide conductors and prevent over-insertion
  • Solid brass blades and contacts provide excellent conductivity
  • Transparent polycarbonate terminal cover makes terminals visible for visual termination verification

Description
Pass & Seymour Camp-Lock Electrical Connector, Straight Blade, 125 V, 20 A, 2 Pole, 3 Wires, Brass/Nylon/Polycarbonate, Black/White, NEMA 5-20R
Unit: EA
UPC: 785007256451
Model Number: PS520CCLBCCV4

Additional Information

  • Color: Black/White
  • Current Rating: 20 A
  • Material: Brass/Nylon/Polycarbonate
  • NEMA Configuration: NEMA 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Type: Straight Blade
  • Voltage Rating: 125 V
