Eaton Wiring Devices  |  Our Item #: MORG4896445

Model Number: TRUSBC20V-BOX - UPC : 032664753411

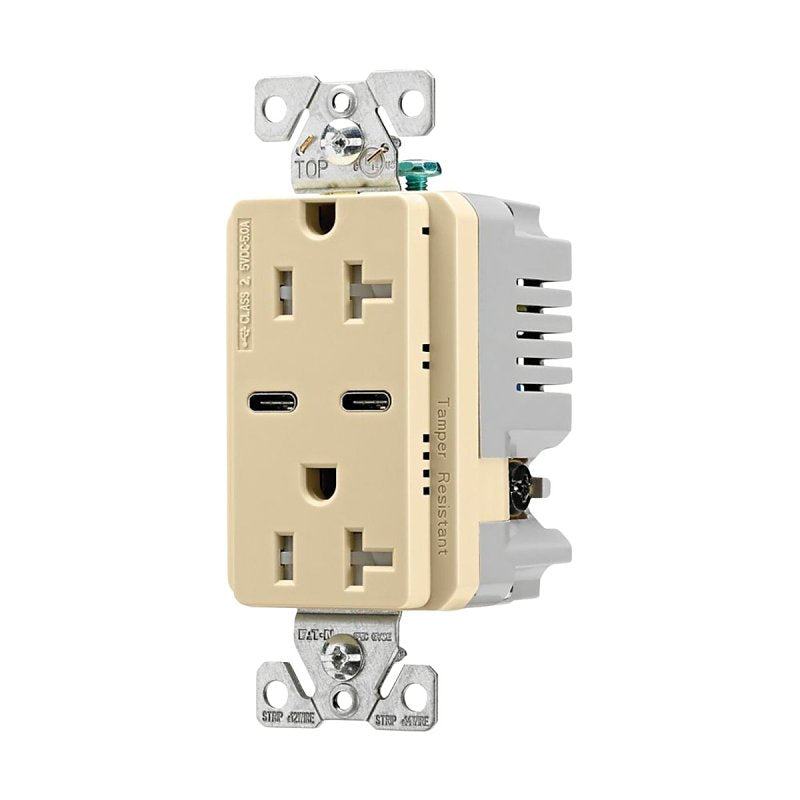

Eaton TRUSBC20V-BOX Combination USB Receptacle, 2-Pole, 20 A, 125 V, 2-USB Port, Type C USB, NEMA: 5-20R, Ivory, Pack of 10

Get special pricing! Apply for a business account today.

Apply Now
$383.45 $441.50
Shipping calculated at checkout.
13% off
New arrival

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Standard AC receptacle with two USB-C ports rated at a combined 5.0A
  • Dual USB-C charging ports charge most electronic devices that comply with the USB-C standard
  • Tamper-resistant shutters provide compliance with 2017 NEC article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
  • Replaces a standard duplex receptacle
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
  • Steel mounting strap is zinc-plated for added corrosion resistance
  • Convenient patented built-in wire strippers speed installation
  • Triple wipe blade contacts and double wipe ground contacts to insure long-term blade retention

Description
Eaton Combination USB Receptacle, Tamper-Resistant, 125 V, 20 A, Number of Poles: 2, Number of Wires: 3, Number of USB Ports: 2, USB Type: Type C, Wire Size: 14 to 12 AWG, NEMA Configuration: 5-20R, Flush Mounting, Thermoplastic, Ivory, Dimensions: 4.19 in H x 1.3 in W x 1.4 in D
Unit: EA
UPC: 032664753411
Model Number: TRUSBC20V-BOX

Additional Information

  • Color: Ivory
  • Current Rating: 20 A
  • Dimensions: 4.19 in H x 1.3 in W x 1.4 in D
  • Material: Thermoplastic
  • Mounting Type: Flush
  • NEMA Configuration: 5-20R
  • Number of Poles: 2
  • Number of USB Ports: 2
  • Number Of Wires: 3
  • Type: Tamper-Resistant
  • USB Type: Type C
  • Voltage Rating: 125 V
  • Wire Size: 14 to 12 AWG
