Leviton  |  Our Item #: MORG7583065

Model Number: R22-AGTR1-0KW - UPC : 078477760840

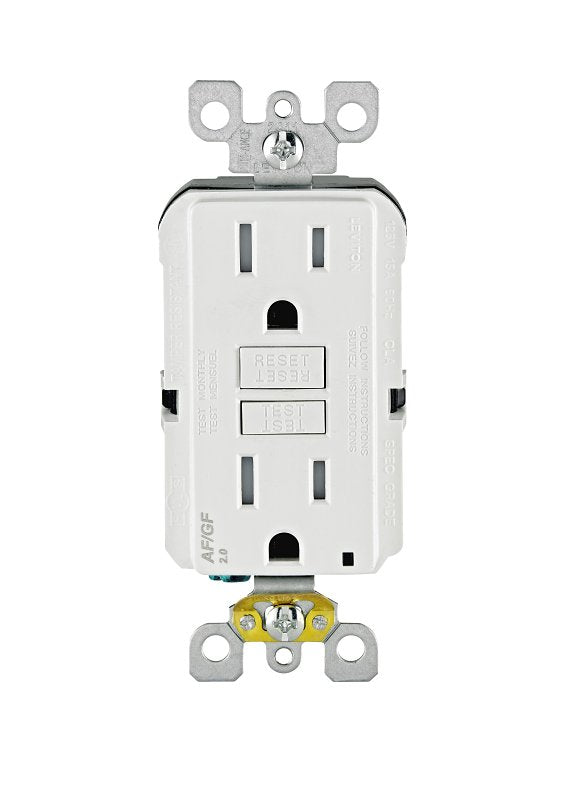

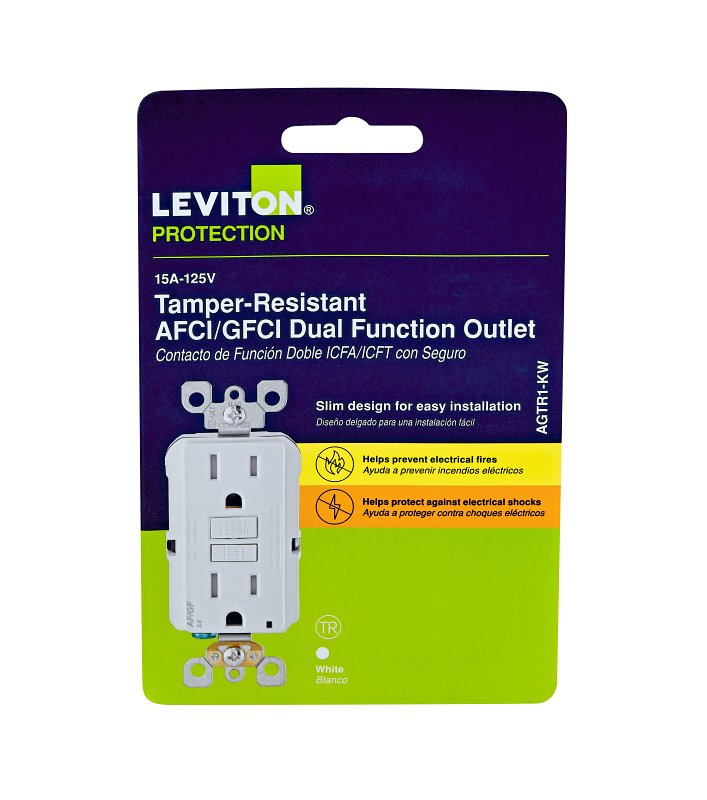

SmartlockPro R22-AGTR1-0KW Dual Function AFCI/GFCI Outlet, 125 VAC, 15 A, NEMA: 5-15R, Back, Side Wiring, White

Get special pricing! Apply for a business account today.

Apply Now
$28.86 $38.29
Shipping calculated at checkout.
25% off
New arrival

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Trip threshold meets or exceeds UL requirements for tripping time on ground faults and on both series and parallel arcs for optimal safety
  • Engineered to meet the latest UL standard for auto-monitoring (self-test)
  • On initial power up, tests the GFCI circuit within 3 s
  • Patented Lockout Action prevents reset if the device is damaged
  • Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal for at-a-glance analysis
  • TEST and RESET buttons are readily accessible on the face of the device
  • Improved immunity to high frequency noise reduces nuisance tripping
  • Excellent resistance to electrical surges and over-voltages enhancing reliability
  • Patented bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed)
  • One-piece T-design trip latch mechanism provides efficient operation

Description
The SmartlockPro dual function AFCI/GFCI receptacle offers protection both from electrical fires that could result from arc-faults and from electrical shock due to ground faults in one smart device. Through advanced technology, the SmartlockPro dual function AFCI/GFCI receptacle helps protect home and family by working to detect arc-fault and ground fault hazards and if detected, quickly cuts off power to help avoid a potential fire or shock occurrence. The SmartlockPro dual function AFCI/GFCI receptacle offers a National Electrical Code (NEC) compliant option for AFCI/GFCI protection in residential kitchens and laundry areas for new construction, modifications/extensions and replacement receptacles. It is also ideal as a replacement for ungrounded receptacles, satisfying NEC requirements for both AFCI and GFCI protection.
Unit: EA
UPC: 078477760840
Model Number: R22-AGTR1-0KW

Additional Information

  • Color: White
  • Current Rating: 15 A
  • Dimensions: 4.21 in H x 1.31 in W x 1.3 in D
  • Flammability Rating: V-2
  • Grounding Type: Self-Grounding
  • Includes: Wallplate
  • Material: Polycarbonate
  • Mounting Type: Clamp
  • Nema Rating: 5-15R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -35 to 66 deg C
  • Short Circuit Current Rating: 10 kA
  • Type: Self Test Tamper-Resistant
  • Voltage Rating: 125 VAC
  • Wire Size: 10 to 14 AWG Copper 10 to 12 AWG Copper Clad ga
  • Wiring Type: Back Side
