Cutler-Hammer | Our Item #:
MORG7120058
Model Number: BRP40L200 - UPC : 786689052997

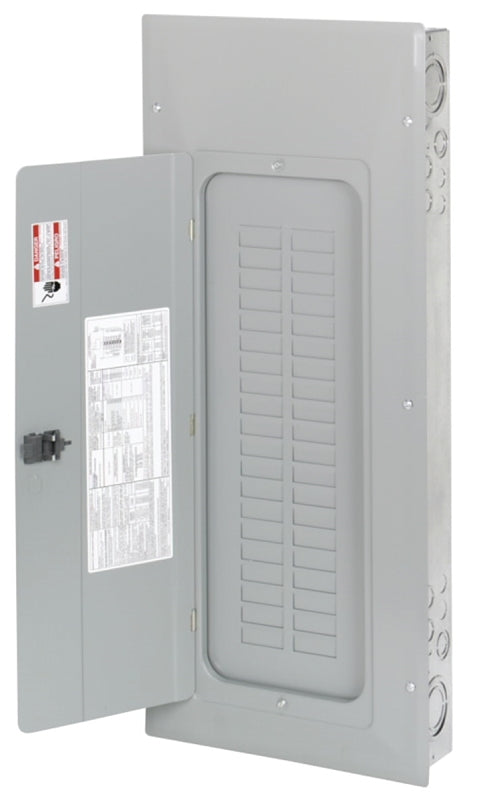

Cutler-Hammer BRP40L200 Load Center with Ground Bar, 200 A, 1 -Pole, 40 -Space, 80 -Circuit, Main Lug, Type BR
Sale price
$220.03
Regular price
$253.09
Unit price
Unavailable
Shipping calculated at checkout.
13% off
Cutler-Hammer BRP40L200 Load Center with Ground Bar, 200 A, 1 -Pole, 40 -Space, 80 -Circuit, Main Lug, Type BR is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Cutler-Hammer BRP40L200 Load Center with Ground Bar, 200 A, 1 -Pole...
Sale price
$220.03
Regular price
$253.09
Unit price
Unavailable
Cutler-Hammer | Our Item #:
MORG7120058
Sale price
$220.03
Regular price
$253.09
Unit price
Unavailable
Shipping calculated at checkout.
Cutler-Hammer BRP40L200 Load Center with Ground Bar, 200 A, 1 -Pole, 40 -Space, 80 -Circuit, Main Lug, Type BR is backordered and will ship as soon as it is back in stock.
Features
- Knockout locations for additional access, easier to remove
- Smooth case edges provides a more professional look and feel
- Top or bottom feed, straight-in wiring saves labor and material, one panel for either top or bottom applications
- 2/0 lug easily removable and can be installed in any location on the neutral bar
- Compact design for easier wiring and improved wireway access, optional LED indicates one of six trip codes for circuit diagnostics, provides a clean gutter space
- Excellent conductivity and corrosion resistance, copper bus options available
- Tangential center knockout, easier installation for conduit applications
- Commercial-grade main breaker, 25 kAIC series rated main breaker for great protection
- Grounding screw provides a quick and easy means of bonding the neutral and ground
- Twin neutral bars minimum 150% neutral capacity
Description
Description
Load centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
Unit: EA
Unit: EA
MPN: BRP40L200
UPC: 786689052997
Additional Information
Additional Information
- Breaker/Load Center Type: Main Lug Type BR
- Bus Bar Material: Aluminum
- Cable Size: 1 to 300 kcmil
- Color: Gray
- Current Rating: 200 A
- Enclosure Type: NEMA 1
- Includes: Cover
- Interrupt Rating: 10 kAIC
- Mounting Type: Flush Surface
- Number of Circuits: 80
- Number of Phases: 1
- Number of Poles: 1
- Number Of Spaces: 40
- Voltage Rating: 120/240 V
- Wiring Configuration: 2-Wire
