Blue Sea Systems  |  Our Item #: MLAN661-5032

Model Number: 5032 - UPC : 632085050320

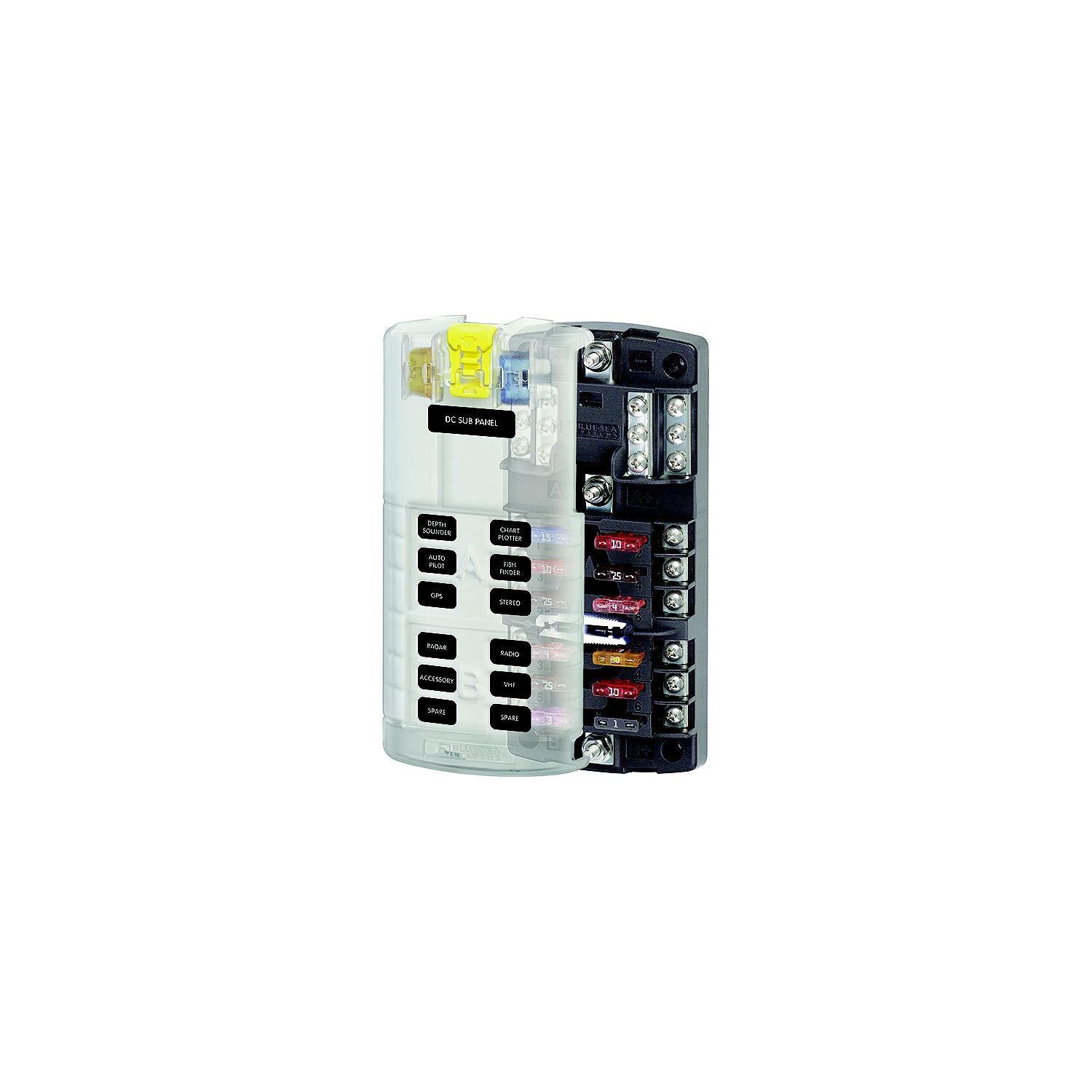

Blue Sea Systems ST Blade Split Bus Fuse Bock, 12 Circuit

$78.78 $93.99
Shipping calculated at checkout.
16% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

Description
Two isolated 6-circuit fuse blocks with a negative bus. For use when a mix of switched and 24-hour circuits are desired in the same block.
  • Common and/or independent source fuse block
  • Provides two isolated groups of six ATO®/ATC® circuits
  • For use with either two isolated batteries or with a single battery providing a mix of 24-hour and switched circuits
  • Clear insulating cover satisfies ABYC/USCG insulation requirements and provides storage for two spare fuses
  • Accepts ring terminals
  • Easy to open, push button latch provides easy access to fuses
  • Tin-plated copper buses and fuse clips
  • Includes 20 write-on circuit labels
  • Fuses sold separately
    Specifications
  • Voltage Max. Operating: 32V DC
  • Amperage Max. Operating: 30A per circuit 100A total (not to exceed 80A per load group)
  • Fuse Type: ATO® or ATC® Fuses
  • Screw Terminal: #8-32 Screws with captive star lock washer
  • Mounting: #8 Screw (M4)
  • Recommended Wire Size: Positive Feed: 4-6 AWG (25-16 mm), Branck Circuits: 10-16 AWG (6-15 mm)
  • Recommended Torque: #10 Stud: 24 in-lb (2.71 N-m), #8 Screw: 18 in-lb (2.03 N-m)

    • MPN: 5032

    UPC: 632085050320
