COLE HERSEE  |  Our Item #: MLAN12-24450BX

Model Number: 24450-BX - UPC : 632850249157

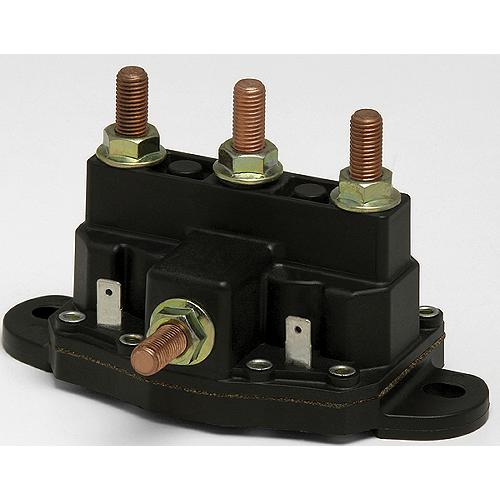

12V Motor Reversing Solenoid

$188.74 $240.19
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

Description
DPDT intermittent duty. Common ground coil. Two blade coil terminals, 5/16" -24 large studs. Copper contacts. F bracket. 75A make and break, maximum On time 5 mins. 125A make and break, maximum On time 0.5 sec. Allow 5 mins. Off after max. On time. Max. operating voltage 14.5V DC. Cycle life 10,000 cycles at 5 sec. On, 25 sec. Off. Shipped w/ mounting hardware.
UPC: 632850249157
Model Number: 24450-BX

Additional Information
12V Motor Reversing Solenoid
COLE HERSEE

12V Motor Reversing Solenoid

$188.74 $240.19
DPDT intermittent duty. Common ground coil. Two blade coil terminals, 5/16" -24 large studs. Copper contacts. F bracket. 75A make and break, maximum On time 5 mins. 125A make and break, maximum On time 0.5 sec. Allow 5 mins. Off after max. On time. Max. operating voltage 14.5V DC. Cycle life 10,000 cycles at 5 sec. On, 25 sec. Off. Shipped w/ mounting hardware.
UPC: 632850249157
Model Number: 24450-BX
