Square D  |  Our Item #: MORG3742475

Model Number: FSG2J20M4BP - UPC : 666916082652

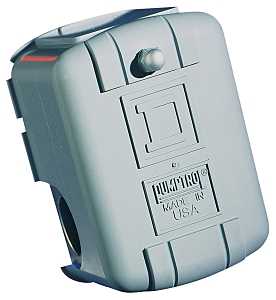

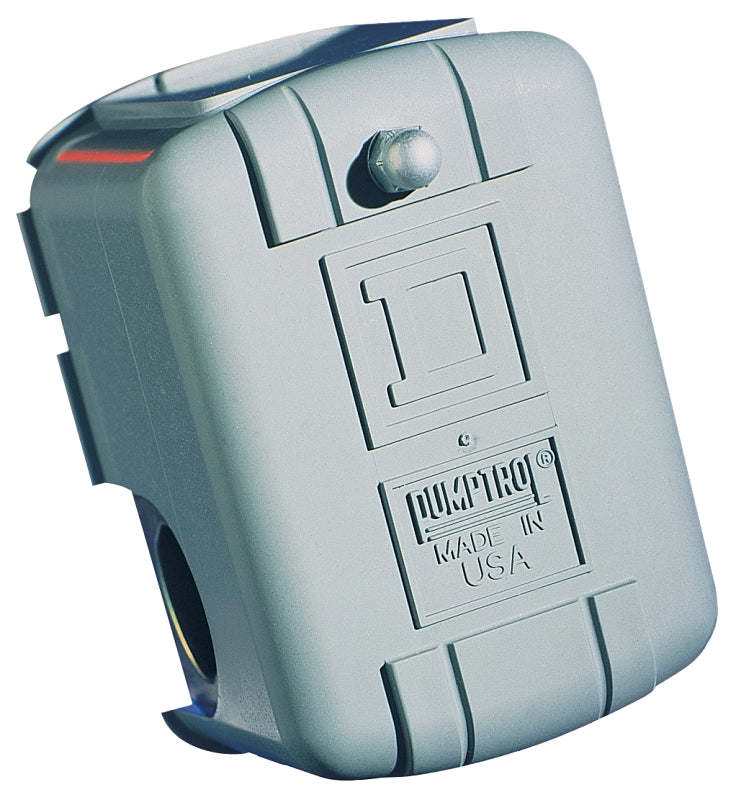

Square D Pumptrol FSG2J20M4BP Pressure Switch, 1-Phase, 115/230 V, 2-Pole, Screw Clamp Terminal, 220 psi Working

Get special pricing! Apply for a business account today.

Apply Now
$32.63 $45.95
Shipping calculated at checkout.
29% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Adjustable cut-in/out
  • Long-life
  • Designed to monitor and control electrically driven water pumps
  • These durable pressure switches monitor systems to start and stop a pump at pre-set pressures

Description
Water pump pressure switch factory set to 20 to 40 psi. Suitable for use on all types of pumps including jet, submersible and reciprocating. Two-pole, NEMA Type 1 indoor enclosure, 1/4 in NPSF internal pressure connection, diaphragm actuated, UL/CSA listed, RoHS compliant, NSF61-Annex G certified, includes low-pressure cut-off to stop pump in the event of run dry or a line break. Individually boxed.
Unit: EA
UPC: 666916082652
Model Number: FSG2J20M4BP

Additional Information

  • Body Material: Noryl Thermoplastic Resin/Polypropylene
  • Connection Type: Female
  • Contact Form: 2-Pole
  • Diaphragm Material: Nitrile
  • Dimensions: 95.5 mm L x 78.74 mm W x 71.1 mm H
  • Electrical Connection Type: Screw Clamp Terminal
  • Enclosure Type: NEMA 1
  • Number of Phases: 1
  • Operating Cycles: 100000
  • Suitable for: Water Pumps
  • Temperature Rating: -22 to 158 deg F
  • Voltage Rating: 115/230 V
  • Wattage Rating: 0.18 to 2.2 kW
  • Working Pressure: 220 psi
