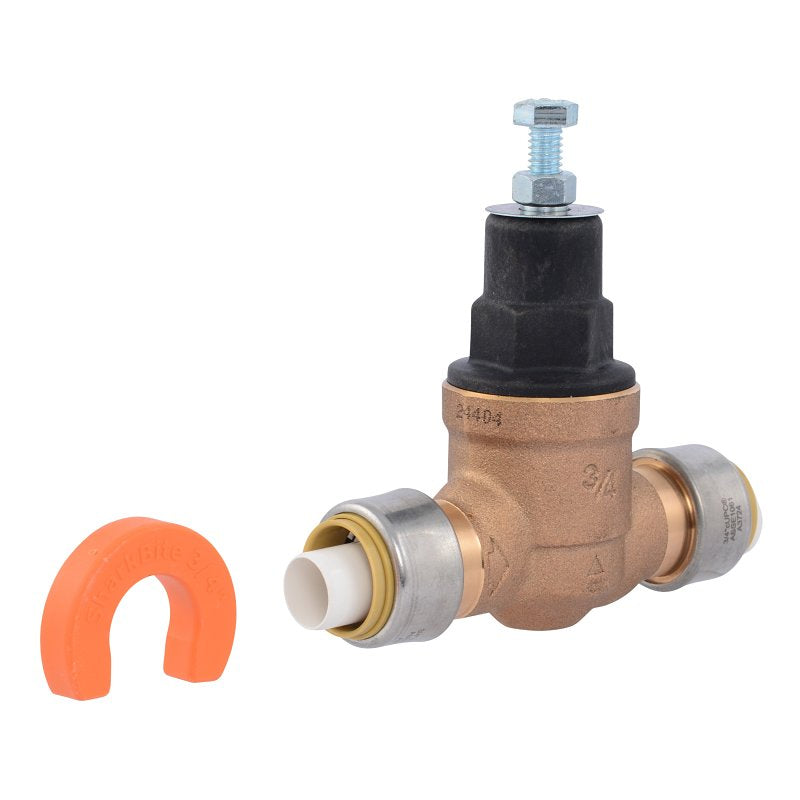

Cash Acme EB45 Series PVA16P-DSB-60 Pressure Regulating Valve, 3/4 in Connection, Push-Fit, 10 to 70 psi Regulating

The EB45 pressure regulator with SharkBite push-fit connections features a half cartridge design that offers the performance of a high-end, cartridge-based valve and the price of a traditional regulator. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge-based valve. The EB45 comes factory set at 60 psi but may be adjusted between 10 to 70 psi. The EB45 is available with several different SharkBite connections for ease of installation and a trustworthy watertight seal. EB45 SharkBite options include double union SharkBite, Direct SharkBite or Direct SharkBite with slip feature and includes an integrated back-check feature in case the pressure in the system exceeds the incoming pressure.
Unit: EA
UPC: 697285110694
Model Number: PVA16P-DSB-60

• Actuator Type: Manual
• Additional Information: Poly Top Type
• Body Material: Brass
• Connection Size: 3/4 in
• Connection Type: Push-Fit
• Dimensions: 1-47/64 in W
• Media: Water
• Operating Pressure: 400 psi
• Regulating Pressure: 10 to 70 psi
• Softgoods material: EPDM/Polyphenylene
• Temperature Rating: 33 to 180 deg F
• Trim Material: Iron/Stainless Steel/Steel
