Knape & Vogt Mfg | Our Item #:
MORG5326780
Model Number: 1175P ZC 22-5/8 - UPC : 029274001421

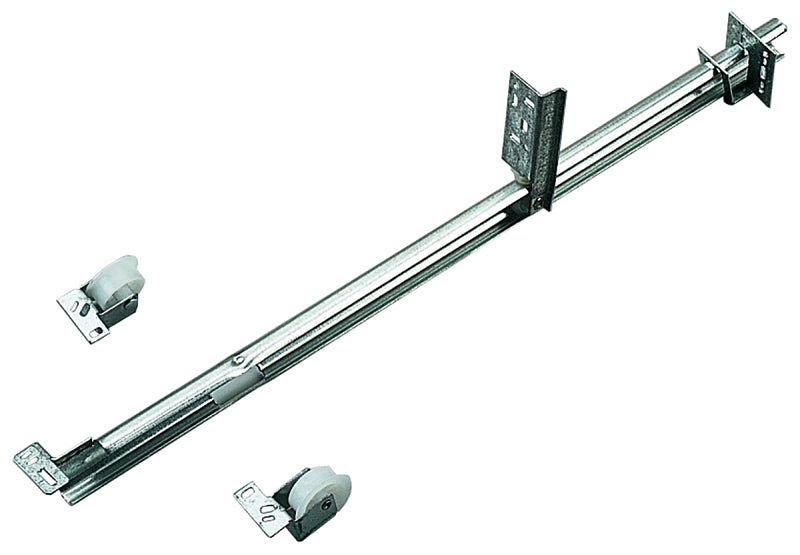

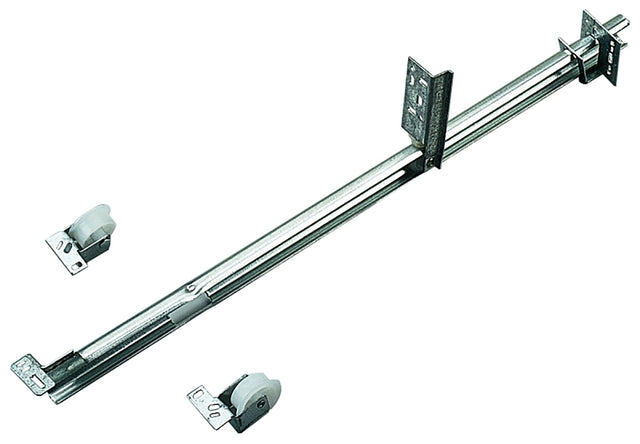

Knape & Vogt 1175P ZC 22-5/8 Drawer Slide, 50 lb, Center Undermount Mounting, 22-5/8 in L Rail, 1/2 in W Rail, Steel
$5.95
$9.09
Unit price
/
Unavailable
Shipping calculated at checkout.
35% off
Knape & Vogt 1175P ZC 22-5/8 Drawer Slide, 50 lb, Center Undermount Mounting, 22-5/8 in L Rail, 1/2 in W Rail, Steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Knape & Vogt 1175P ZC 22-5/8 Drawer Slide, 50 lb, Center Underm...
$5.95
$9.09
Unit price
/
Unavailable
Features
- 3/4 in extension under drawer slide moves on rollers for stabilization
- The drawers lift out for easy removal and the slide can be mounted easily with staples or screws
- Recommended maximum drawer width 18 in wide
- Drawers lift out for easy removal
- Mounts with staples or screws
Description
Description
Light-duty slide designed for general drawer applications. Mounts with staples or screws. Height of 1 in. Required Clearance:1/8 in each side, 1-1/2 in from rear of drawer to cabinet, drawer to be 3/8 in shallower than opening. High-density polyethylene rollers. Drawers lift out for easy removal. Packaged with screws and installation instructions.
Unit: EA
UPC: 029274001421
Model Number: 1175P ZC 22-5/8
Unit: EA
UPC: 029274001421
Model Number: 1175P ZC 22-5/8
Additional Information
Additional Information
- Bearing Type: Roller
- Finish: Zinc
- Includes: 6 x 1/2 in Phillips Flat Head Slide
- Material: Steel
- Mounting Type: Center Undermount
- Rail Length: 22-5/8 in
- Rail Width: 1/2 in
- Weight Capacity: 50 lb
