Simpson Strong-Tie  |  Our Item #: MORG7970411

Model Number: THD50600H4SSF1 - UPC : 707392003281

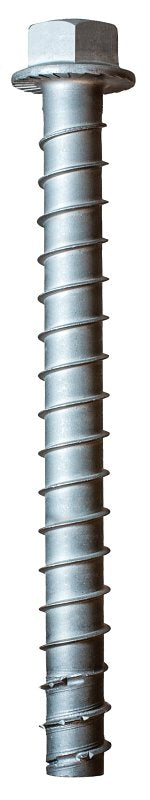

Simpson Strong-Tie Titen HD THD50600H4SSF1 Heavy-Duty Screw Anchor, 1/2 in Dia, 6 in L, Stainless Steel, Zinc Plated, Pack of 10

Get special pricing! Apply for a business account today.

Apply Now
$116.76 $164.50
Shipping calculated at checkout.
29% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Qualified for static and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
  • Hex washer head requires no separate washer and provides a clean installed appearance
  • The THDSS has an innovative carbon-steel thread that effectively cuts the concrete while significantly limiting the amount of carbon steel in the anchor; less carbon steel, less expansion
  • Made from Type 304 stainless steel
  • Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity

Description
The Titen HD stainless-steel screw anchor for concrete and masonry is ideal for when the job calls for fast and efficient installation in multiple types of environments. The Titen HD stainless steel is a state-of-the-art anchor solution that combines the long lasting corrosion-resistance of Type 300 Series stainless steel with the undercutting ability of heat-treated carbon-steel cutting threads.
Unit: EA
UPC: 707392003281
Model Number: THD50600H4SSF1

Additional Information

  • Color: Silver
  • Diameter: 1/2 in
  • Drill Size: 1/2 in
  • Drive Type: 6-Lobe
  • Finish: Zinc Plated
  • Head Type: Hex
  • Length: 6
  • Material: Stainless Steel
  • Minimum Concrete Thickness: 5 to 6-1/4 in
  • Minimum Embedment Depth: 3-1/2 in
  • Shear Strength: 4790 lb
  • Tensile Strength: 110000 psi
  • Thread Length: 5-1/2 in
