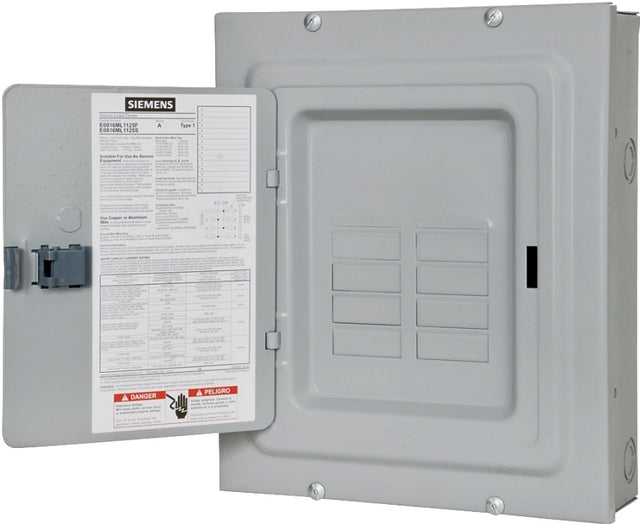

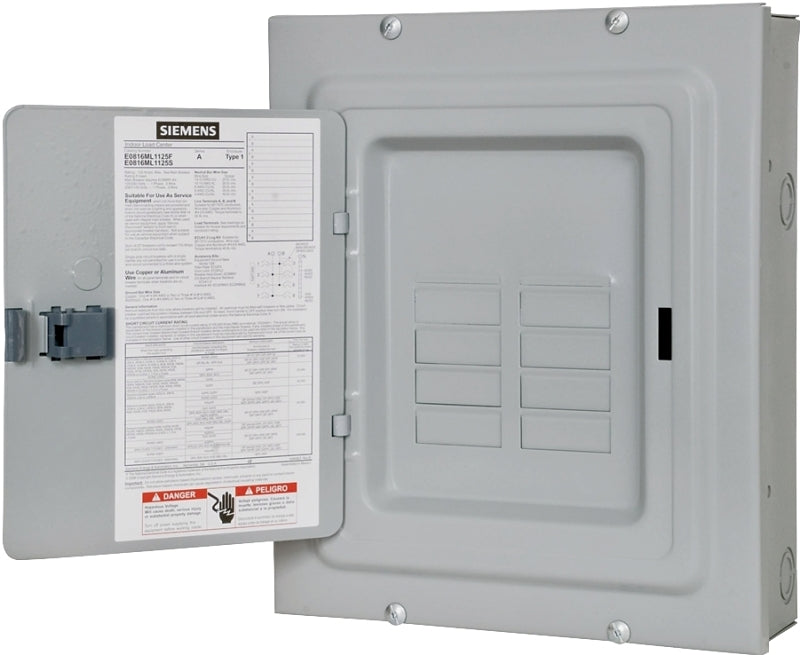

Siemens Murray E E0816ML1125S Load Center, 125 A, 8 -Space, 16 -Circuit, Main Lug, NEMA 1 Enclosure, Gray

Code-gauge steel enclosure. Single phase, 3-wire, solid neutral, 8 spaces and 16 circuits maximum 1-pole, 4 QP breakers maximum 2-pole, 120/240 V. 10,000 AIR. One piece plated aluminum bus bar. 100% circuit breaker twist outs. Positive load side circuit breaker hook rail. Suitable for use as service entrance equipment when a main breaker (125 A maximum) is back-fed in branch position and used with main breaker retainer clip No MBR1. When used as service equipment, any unused neutral position may be used for equipment grounding. Rotate entire device 180 deg for bottom feed. Gray enamel finish. 12-3/8 in x 14-3/4 in x 3-7/8 in. UL listed, complies fully with NEC and UL requirements for Class CTL.
Unit: EA
UPC: 783643202122
Model Number: E0816ML1125S

• Breaker/Load Center Type: Main Lug
• Bus Bar Material: Aluminum
• Cable Size: 4 to 2/0 AWG
• Color: Gray
• Current Rating: 125 A
• Enclosure Type: NEMA 1
• Interrupt Rating: 100 kA
• Mounting Type: Surface
• Number of Circuits: 16
• Number of Phases: 1
• Number Of Spaces: 8
• Voltage Rating: 120/240 V
• Wiring Configuration: 3-Wire
