Seastar Solutions  |  Our Item #: MLAN1-PA12002

Model Number: PA1200-2 - UPC : 731957898791

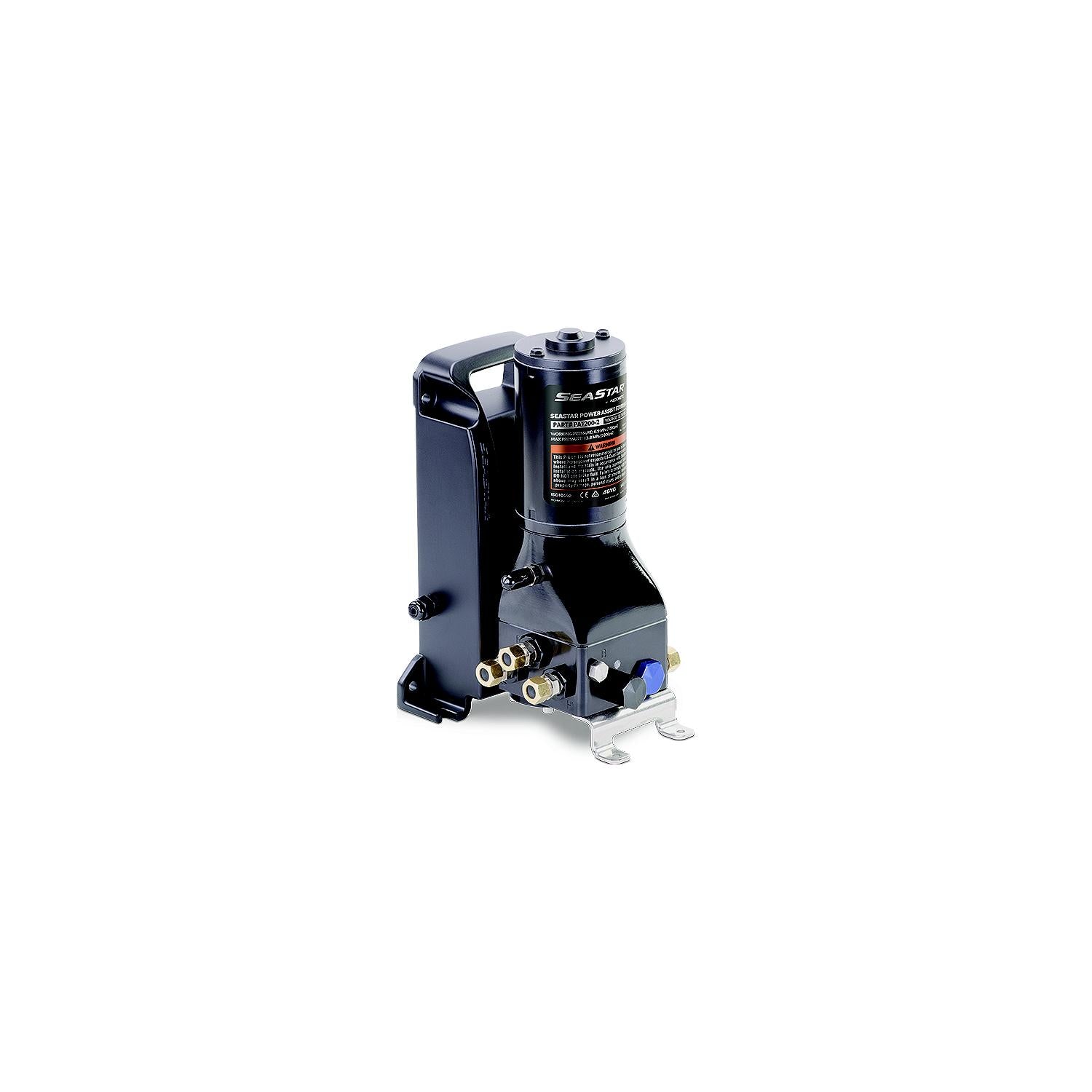

Power Assist Unit-Seastar

$2,697.65 $3,072.19
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

    Dramatically reduces steering effort
  • OEM or retro-fit
  • Simple add-on to an existing SeaStar steering system (from 1.4 to 2.4 SeaStar helms)
  • Suitable for use with autopilots
  • Wiring harness included
  • Ignition protected (SAE J-1171) and ABYC, CE, NMMA, ISO 10592 Approved
  • 12/24 Volts (automatically recognized)
  • 1000psi MAX system peak pressure (500psi working load)
  • Relief pressure 2000 psi
  • MAX current draw = 50 amps
  • Typical current draw = ~3 amps
  • Purple ignition wire MAX current draw = 1 amp

Description
The SeaStar Power Assist unit virtually eliminates all steering loads on the wheel and reduces steering effort in heavy or high torque applications to reduce driver fatigue and discomfort, just like in a car. It can be installed on new SeaStar installations or as an easy retrofit to existing systems by using an electronically controlled hydraulic pump to provide on-demand power steering. If power is interrupted for any reason, the steering will return to manual operation, but will, of course, be heavier than with the Power Assist activated. Operates on 12V or 24V and can be bulkhead or deck mounted.
Features:
Dramatically reduces steering effort
OEM or retro-fit
Simple add-on to an existing SeaStar steering system (from 1.4 to 2.4 SeaStar helms)
Suitable for use with autopilots
Wiring harness included
Ignition protected (SAE J-1171) and ABYC, CE, NMMA, ISO 10592 Approved
  • Dramatically reduces steering effort
  • OEM or retro-fit
  • Simple add-on to an existing SeaStar steering system (from 1.4 to 2.4 SeaStar helms)
  • Suitable for use with autopilots
  • Wiring harness included
  • Ignition protected (SAE J-1171) and ABYC, CE, NMMA, ISO 10592 Approved
  • 12/24 Volts (automatically recognized)
  • 1000psi MAX system peak pressure (500psi working load)
  • Relief pressure 2000 psi
  • MAX current draw = 50 amps
  • Typical current draw = ~3 amps
  • Purple ignition wire MAX current draw = 1 amp

Additional Information

  • Description: Standard Power Assist, 15' Harness

Seastar Solutions

Power Assist Unit-Seastar

$2,697.65 $3,072.19
The SeaStar Power Assist unit virtually eliminates all steering loads on the wheel and reduces steering effort in heavy or high torque applications to reduce driver fatigue and discomfort, just like in a car. It can be installed on new SeaStar installations or as an easy retrofit to existing systems by using an electronically controlled hydraulic pump to provide on-demand power steering. If power is interrupted for any reason, the steering will return to manual operation, but will, of course, be heavier than with the Power Assist activated. Operates on 12V or 24V and can be bulkhead or deck mounted.
Features:
Dramatically reduces steering effort
OEM or retro-fit
Simple add-on to an existing SeaStar steering system (from 1.4 to 2.4 SeaStar helms)
Suitable for use with autopilots
Wiring harness included
Ignition protected (SAE J-1171) and ABYC, CE, NMMA, ISO 10592 Approved
  • Dramatically reduces steering effort
  • OEM or retro-fit
  • Simple add-on to an existing SeaStar steering system (from 1.4 to 2.4 SeaStar helms)
  • Suitable for use with autopilots
  • Wiring harness included
  • Ignition protected (SAE J-1171) and ABYC, CE, NMMA, ISO 10592 Approved
  • 12/24 Volts (automatically recognized)
  • 1000psi MAX system peak pressure (500psi working load)
  • Relief pressure 2000 psi
  • MAX current draw = 50 amps
  • Typical current draw = ~3 amps
  • Purple ignition wire MAX current draw = 1 amp
