Prime Line Products  |  Our Item #: MORG4134318

Model Number: D1584 - UPC : 049793015846

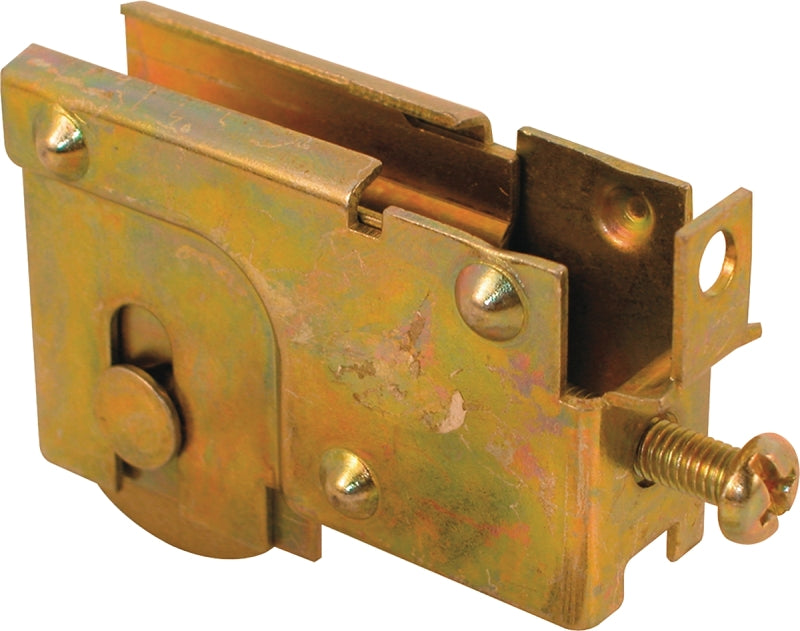

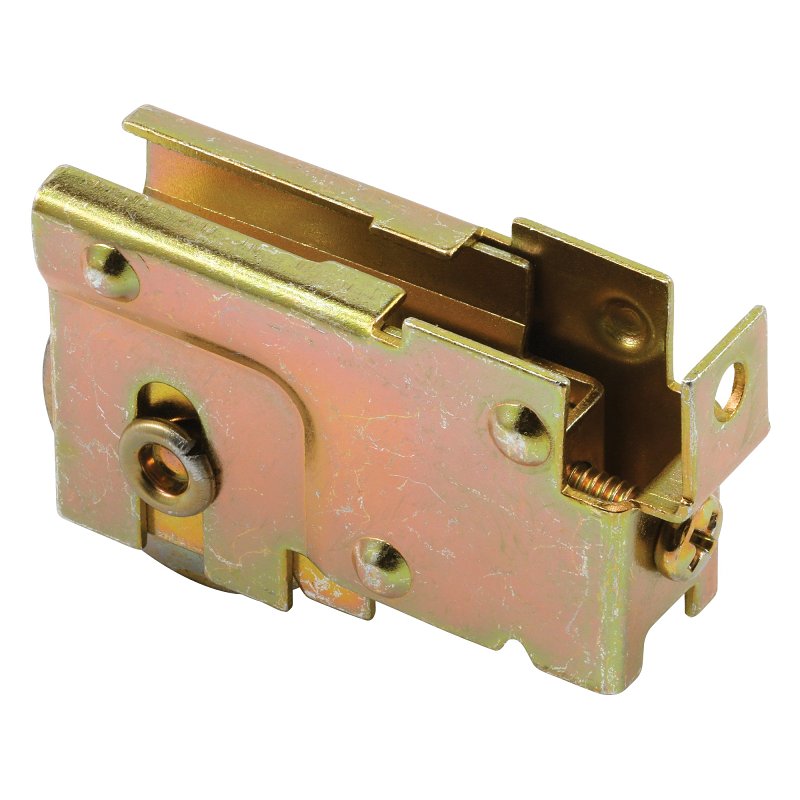

Prime-Line D 1584 Roller Assembly, 1-1/4 in Dia Roller, 5/16 in W Roller, Steel, 1-Roller, F-Tab Mounting

Get special pricing! Apply for a business account today.

Apply Now
$6.94 $9.55
Shipping calculated at checkout.
27% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Used by Northrup and a variety of sliding patio door manufacturers
  • Stamped steel housing and steel rollers
  • Used on metal-framed sliding patio doors
  • Easy-to-install
  • A Phillips head screwdriver is required for installation

Description

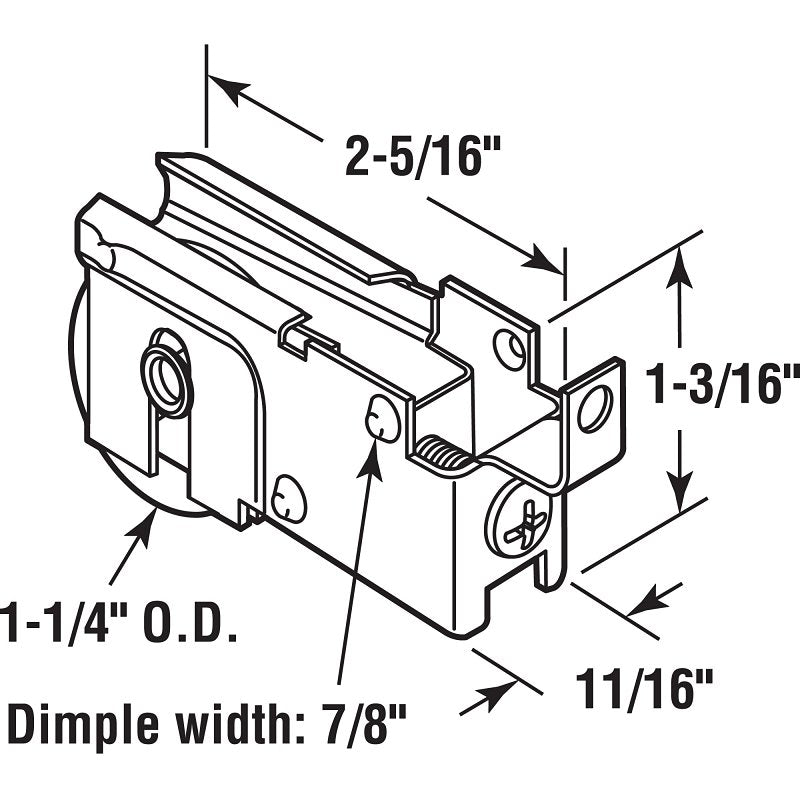

This is a F-tab patio door roller assembly with a 1-1/4 in concave steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two-sides together. The housing is 11/16 in W and 1-3/16 in H with a dimple width of 7/8 in used by Northrup and a variety of sliding patio door manufacturers.
Unit: CD
UPC: 049793015846
Model Number: D1584

Additional Information

  • Bearing Type: Ball
  • Dimensions: 2-5/16 in L x 11/16 in W x 1-3/16 in H
  • Finish: Gold
  • Material: Steel
  • Mounting Type: F-Tab
  • Number of Rollers: 1
  • Roller Diameter: 1-1/4 in
  • Roller Edge Type: Concave
  • Roller Width: 5/16 in
  • Suitable for: Northrop and Other Glass Doors
