Prime-Line D 1525 Roller Assembly, 1-1/2 in Dia Roller, 5/16 in W Roller, Steel, 1-Roller, K-Tab Mounting

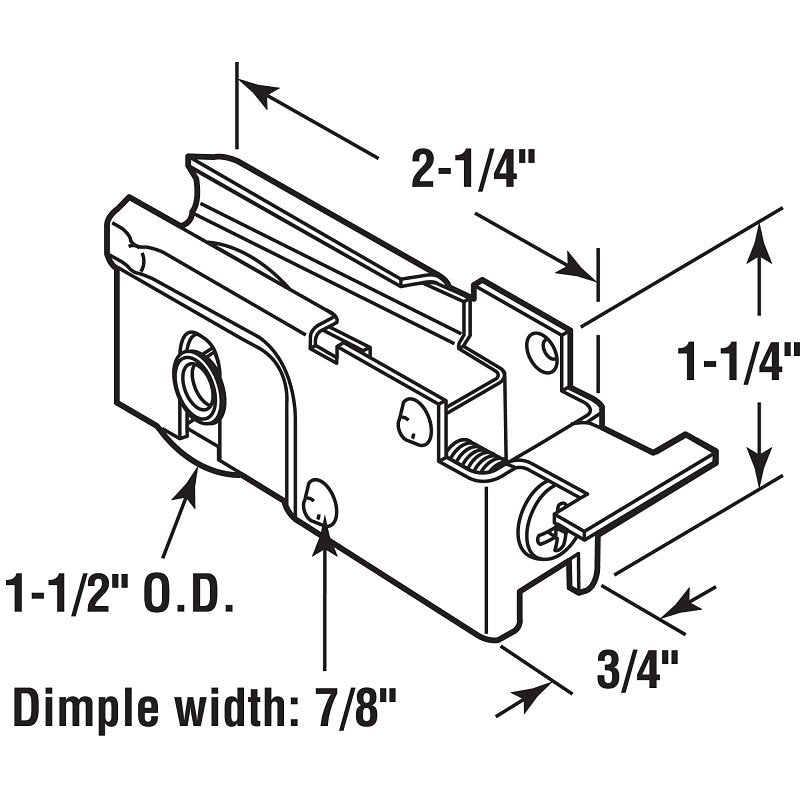

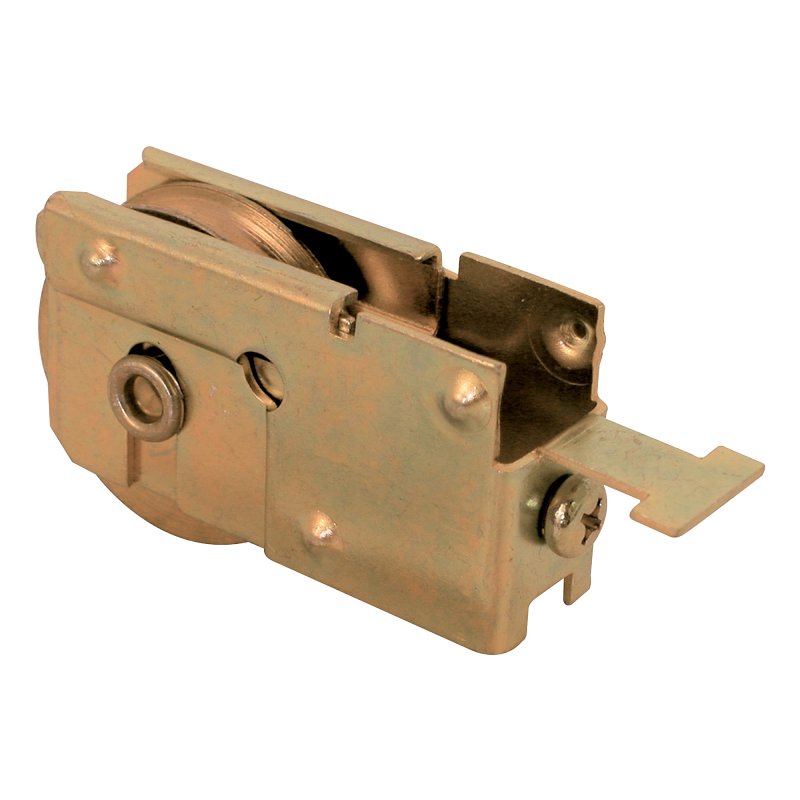

This is a K-Tab patio door roller assembly with a 1-1/2 in concave steel ball bearing roller. The T-shaped tab (K-tab) is simply slid up into a T-shaped receptacle in the bottom of the patio door. No screws are required. The housing is 3/4 in W with a dimple width of 7/8 in, 1-1/4 in H and 2-1/4 in L. The dimples secure it within the door's bottom frame. Used by Marshall and a variety of other sliding door manufacturers.
Unit: CD
UPC: 049793015259
Model Number: D1525

• Bearing Type: Ball
• Dimensions: 2-1/4 in L x 3/4 in W x 1-1/4 in H
• Finish: Gold
• Material: Steel
• Mounting Type: K-Tab
• Number of Rollers: 1
• Roller Diameter: 1-1/2 in
• Roller Edge Type: Concave
• Roller Width: 5/16 in
• Suitable for: Marshall and Other Glass Doors
