Wayne Water Systems  |  Our Item #: MACE45178

Model Number: SWS75 - UPC : 040066218780

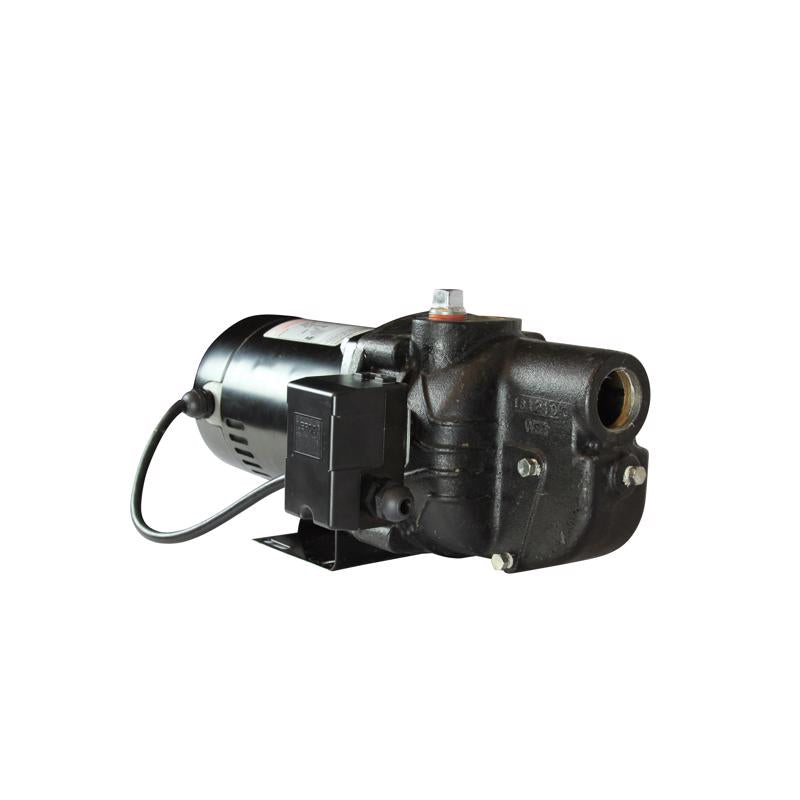

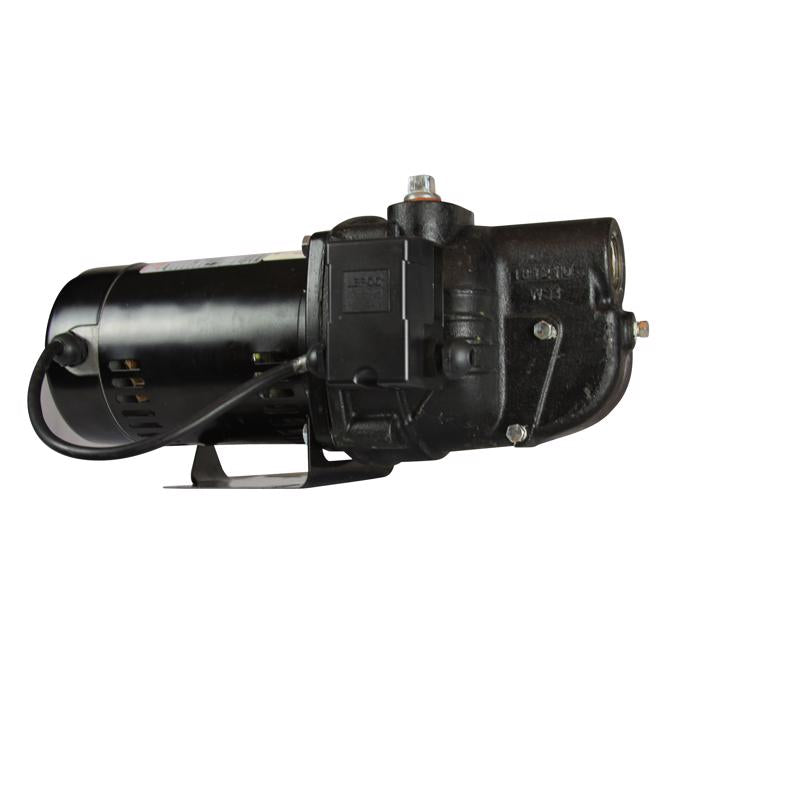

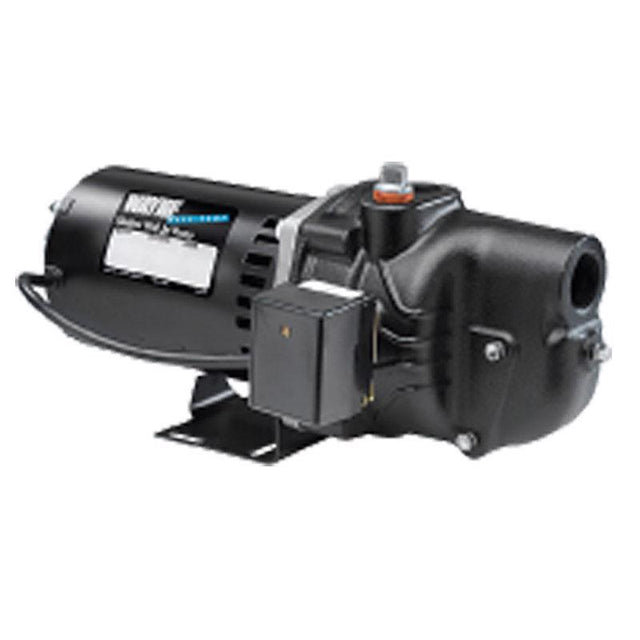

Wayne 3/4 HP 750 gph Cast Iron Shallow Jet Well Pump

Get special pricing! Apply for a business account today.

Apply Now
$359.94 $359.99
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Brand Name:Wayne
  • Product Type: Well Pump
  • Brand Name: Wayne
  • Corrosion Resistant: Yes
  • Depth: 22.30 inch
  • Hardware included: YEs
  • Height: 10.3 inch
  • Horsepower: 3/4 HP (horsepower)
  • Housing Material: Cast Iron
  • Maximum Discharge Flow: 750 gph
  • Maximum Temperature: 110 degree Fahrenheit
  • Minimum Temperature: 40 degree Fahrenheit
  • Pump Switch Type: Pressure
  • Pump Type: Shallow Jet
  • Self Priming: Self-Priming
  • Volts: 240 volt
  • Width: 11.50 inch
  • With Tank: No
  • Powered By: Manual
  • Discharge Pipe Size: 3/4 inch
  • Maximum Feet of Head: 25 foot
  • Agency Compliance: CSA

    • Description
    The Wayne SWS75 is a 3/4 HP durable, cast iron shallow well jet pump packaged with a comprehensive installation manual to help anyone build a safe and long-lasting well pump system. The SWS75 has a dedicated priming port for volute filling. This product comes with a 3 year limited warranty.
  • Model SWS75 pumps up to 468 GPH at 5 feet depth
  • Pressure switch is pre-set at 30-50 PSI for automatic operation
  • Dual voltage (120/240) high efficiency square flange motor (factory wired for 120 volt)
  • 3/4 inch NPT discharge with 1-1/4 inch suction durable cast iron volute
  • For wells 0 feet - 25 feet in depth

    •
    California residents see  Prop 65 Warning(s)


    UPC: 040066218780
    Model Number: SWS75
