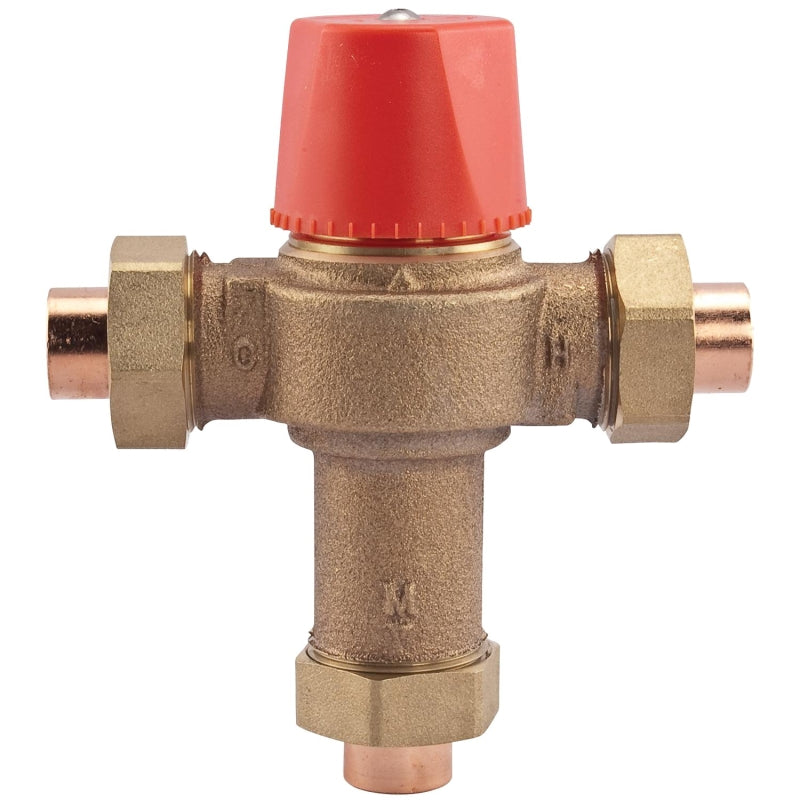

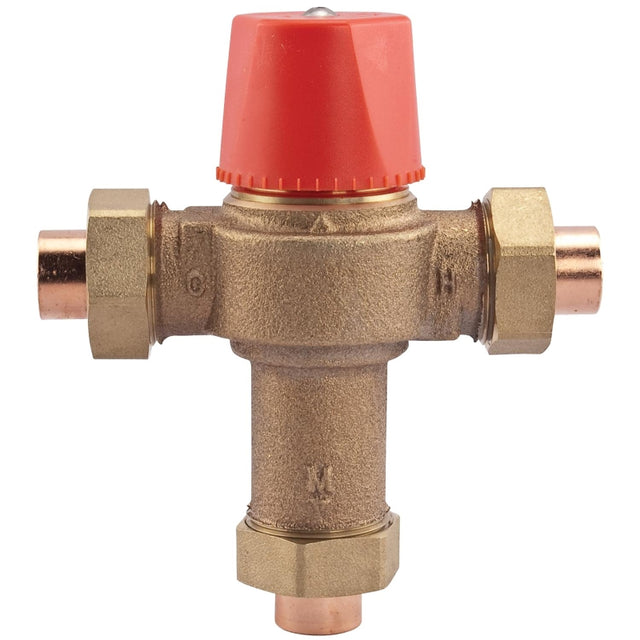

Watts 0960159 Temperature Control Valve, Copper Silicone Alloy

This 3/4 in lead-free hot water control valve is designed for installation on water heating equipment to provide tempered water to point of use fixtures and is ideal for radiant heat applications. The double throttling design combines hot and cold water control for a sensitive response to water temperature changes in the mixing chamber. It consists of a lead-free cast copper silicone alloy body, union solder end connections, solid wax hydraulic principle thermostat, integral filter washers and check valves, virtual shutoff upon loss of cold water supply and a locking mechanism for the temperature setting. The maximum pressure is 150 psi. The adjustable field range temperature is 90 to 160 deg F.
Unit: EA
UPC: 098268730579
Model Number: 0960159

• Material: Copper Silicone Alloy
• Specifications: 90 to 160 deg F Temperature Range 3/4 in Connection Size Union Solder Connection Type 150 psi Maximum Pressure Rating 0.5 to 23 gpm Flow Rate
