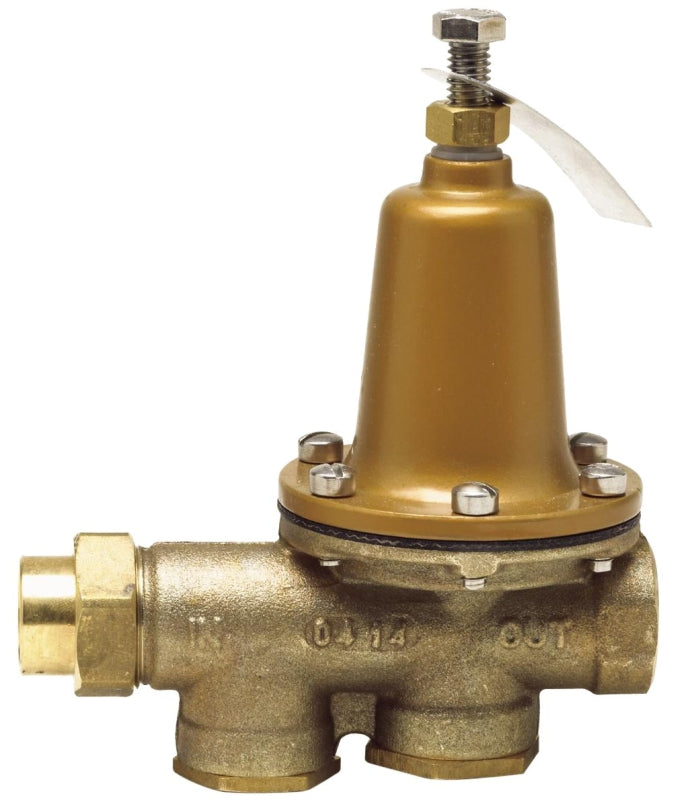

Watts 0960002 Pressure Regulating Valve, 1/2 in Connection

Designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 deg F. Suitable for up to 300 psi, the pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi. Integral stainless steel strainer removable for cleaning. Replaceable seat module.
Unit: EA
UPC: 098268576801
Model Number: 0960002

• Connection Size: 1/2 in
• Media: Water
• Operating Pressure: 300 psi
• Temperature Rating: 33 to 160 deg F
• Trim Material: Stainless Steel
