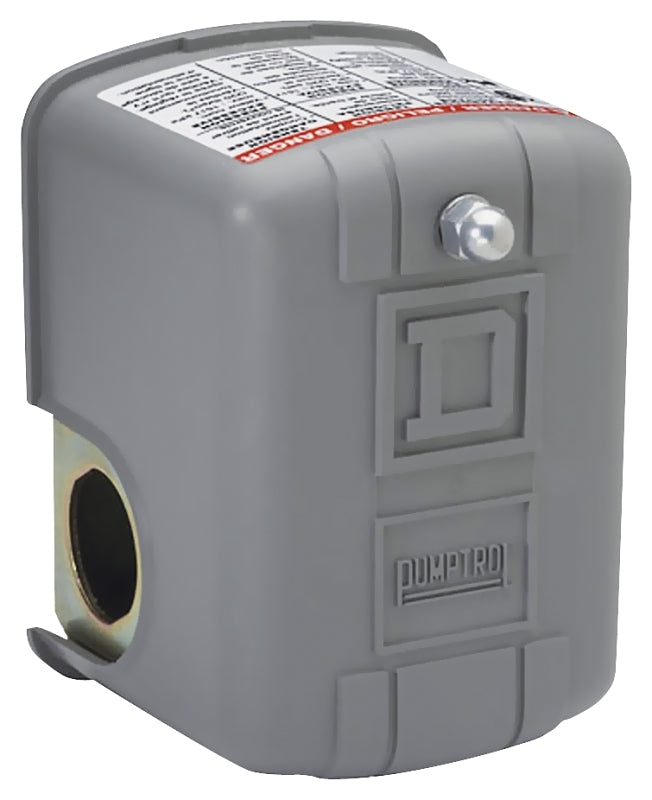

Square D 9013GSG2J20 Pressure Switch, 3-Phase, 10 A, 115/575 V, DPST, Screw Clamp Terminal, 20 to 40 psi Working

Water pump and air compressor pressure switch with 20 to 40 psi cut-in/cut-out settings. Designed to control higher water pumps and air compressors requiring higher electrical ratings. Two pole, NEMA 1 enclosure, 1/4 in NPSF internal pressure connection, diaphragm actuated, UL/CSA Listed, RoHS compliant, NSF61-Annex G certified. Individually boxed.
Unit: EA
UPC: 666916084113
Model Number: 9013GSG2J20

• Body Material: Noryl Thermoplastic Resin/Polypropylene
• Connection Type: Female
• Contact Form: DPST
• Current Rating: 10 A
• Diaphragm Material: Nitrile
• Dimensions: 137.16 mm H x 87.38 mm W x 98.55 mm D
• Electrical Connection Type: Screw Clamp Terminal
• Enclosure Type: NEMA 1
• Number of Phases: 3
• Operating Cycles: 100000
• Port Type: Single
• Suitable for: Air Compressors Water Pumps
• Temperature Rating: -22 to 257 deg F
• Voltage Rating: 115/575 V
• Working Pressure: 20 to 40 psi
