Square D | Our Item #:
MORG6559520
Model Number: QO124L125PGC - UPC : 785901978374

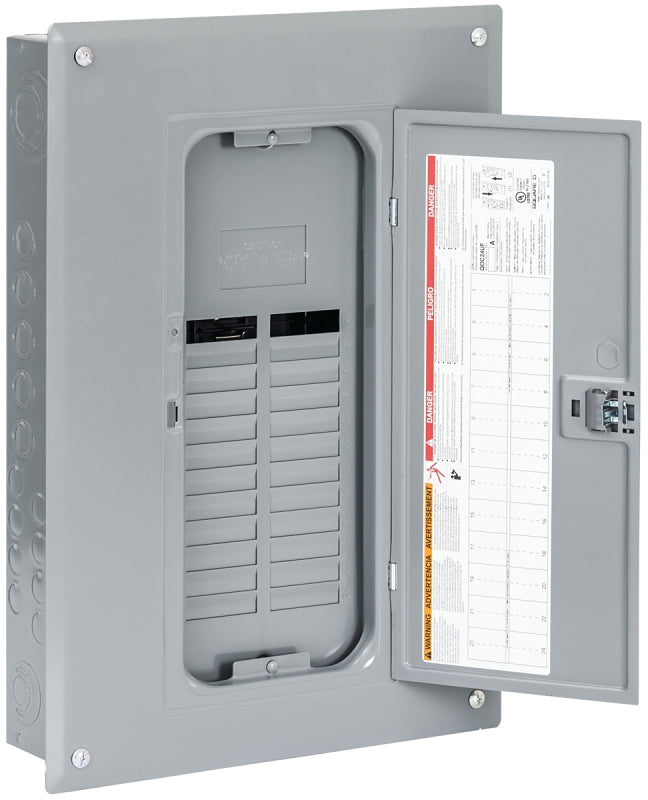

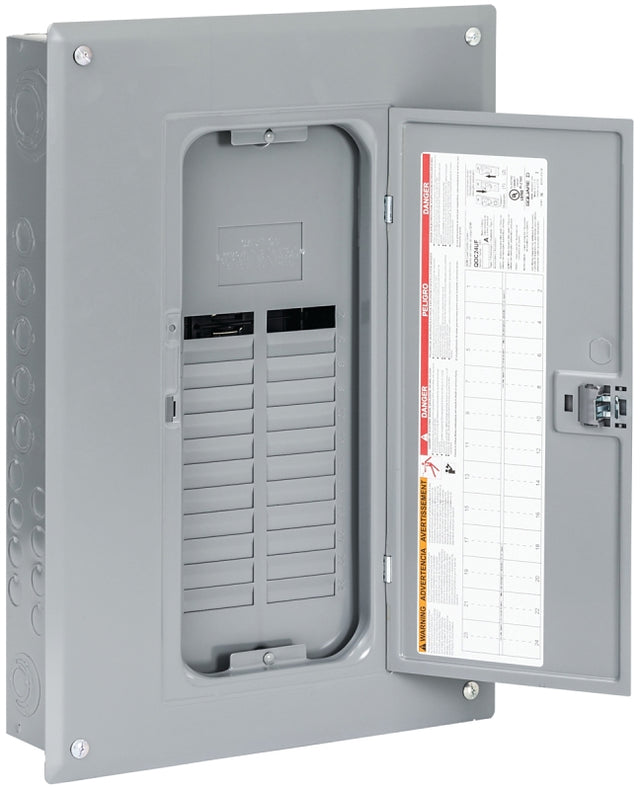

Square D QO QO124L125PGC Load Center, 125 A, 24 -Space, 24 -Circuit, NEMA 1 Enclosure, Plug Mounting, Gray
$93.53
$107.65
Unit price
/
Unavailable
Shipping calculated at checkout.
13% off
Square D QO QO124L125PGC Load Center, 125 A, 24 -Space, 24 -Circuit, NEMA 1 Enclosure, Plug Mounting, Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Square D QO QO124L125PGC Load Center, 125 A, 24 -Space, 24 -Circuit...
$93.53
$107.65
Unit price
/
Unavailable
Features
- One-piece copper bus provides exceptional conductivity and is plated to ensure superior performance and durability
- QO 3/4 in format - this space-saving feature saves wire
- Shield copper bus - an industry first, reduces the chance of accidental contact with the bus
- Five-point mounting enables easier installation
- 180 deg rotation for top or bottom feed improves application flexibility
- Backed-out neutral screws speeds up installation
- Straight-in wiring saves wire, labor and time
Description
Description
Convertible to a main breaker with a QOM1 main breaker. Single-phase load center, NEMA type 1 enclosure, combination flush/surface indoor cover. Overhead or underground feed options.
Additional Information
Additional Information
- Bus Bar Material: Copper
- Cable Size: 6 to 2/0 AWG
- Color: Gray
- Cover/Lid Type: Flush
- Current Rating: 125 A
- Enclosure Type: NEMA 1
- Finish: Baked Enamel
- Interrupt Rating: 22 kA
- Mounting Type: Plug
- Number of Circuits: 24
- Number of Phases: 1
- Number Of Spaces: 24
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
