Square D | Our Item #:
MORG6994677
Model Number: HOM816L125PRB - UPC : 785901973997

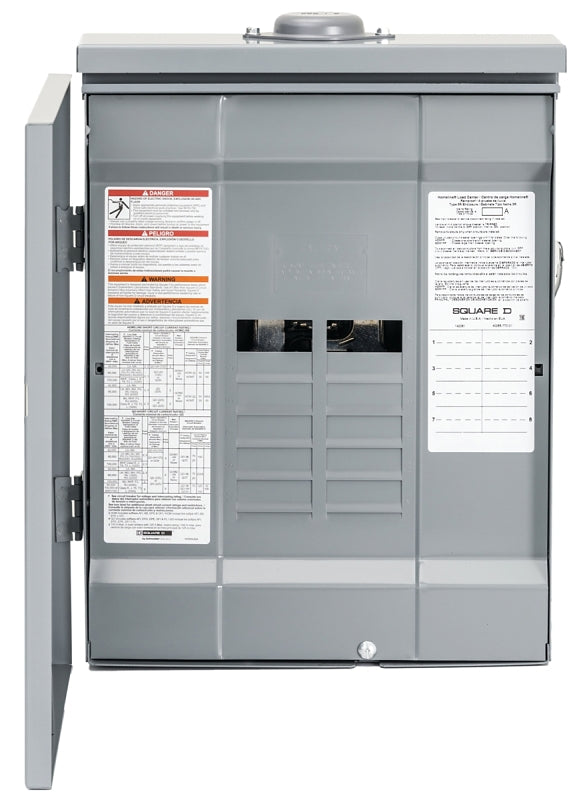

Square D Homeline HOM816L125PRB Load Center, 125 A, 8-Space, 16-Circuit, Main Lug, NEMA 3R Outdoor Enclosure, Plug
$82.55
$94.99
Unit price
/
Unavailable
Shipping calculated at checkout.
13% off
Square D Homeline HOM816L125PRB Load Center, 125 A, 8-Space, 16-Circuit, Main Lug, NEMA 3R Outdoor Enclosure, Plug is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Square D Homeline HOM816L125PRB Load Center, 125 A, 8-Space, 16-Cir...
$82.55
$94.99
Unit price
/
Unavailable
Features
- Designed for fast installation, reliability and superior circuit protection
- Faster installation fewer connections
- Saves wire - fully-distributed split neutral bar
- Frees gutter space - No pigtails
- Easier troubleshooting - time-saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring all spaces accept tandems
Description
Description
Main lug outdoor load center, 125 A 8 space/16 circuit. Convertible to a main breaker. Single-phase load center. Overhead or underground feed options. Plated aluminum bus bar. UL listed.
Additional Information
Additional Information
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Aluminum
- Cable Size: 6 to 2/0 6 to 1
- Color: Gray
- Cover/Lid Type: Surface
- Current Rating: 125 A
- Enclosure Type: NEMA 3R Outdoor
- Finish: Baked Enamel
- Interrupt Rating: 22 kA
- Mounting Type: Plug
- Number of Circuits: 16
- Number of Phases: 1
- Number Of Spaces: 8
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
