Square D | Our Item #:
MORG6994446
Model Number: HOM2040L125PC - UPC : 785901860693

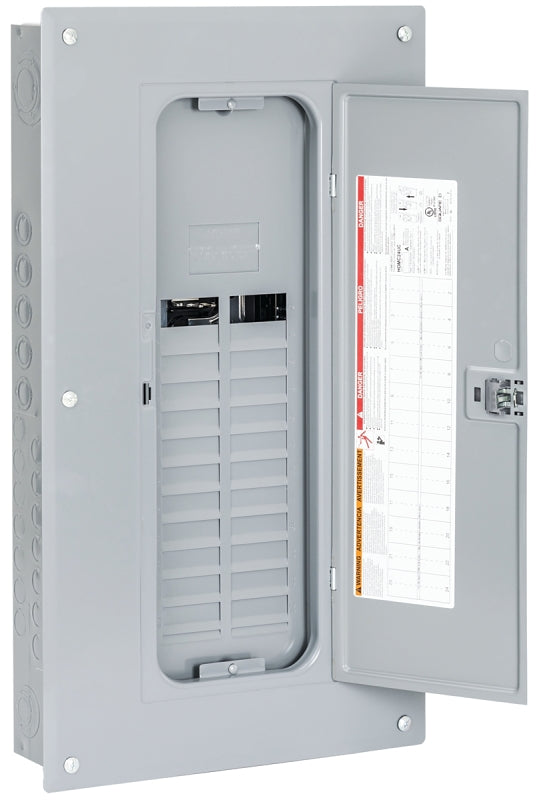

Square D Homeline HOM2040L125PC Load Center, 125 A, 20 -Space, 40 -Circuit, Main Lug, NEMA 1 Enclosure, Gray
$78.10
$89.89
Unit price
/
Unavailable
Shipping calculated at checkout.
13% off
Square D Homeline HOM2040L125PC Load Center, 125 A, 20 -Space, 40 -Circuit, Main Lug, NEMA 1 Enclosure, Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Square D Homeline HOM2040L125PC Load Center, 125 A, 20 -Space, 40 -...
$78.10
$89.89
Unit price
/
Unavailable
Features
- Designed for fast installation, reliability and superior circuit protection
- Faster installation fewer connections
- Saves wire - fully-distributed split neutral bar
- Frees gutter space - No pigtails
- Easier troubleshooting - time-saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring all spaces accept tandems
Description
Description
Main lug indoor load center. Convertible to a main breaker with a QOM1 main breaker. Single-phase load center, NEMA type 1 enclosure, combination flush/surface indoor cover. Overhead or underground feed options. Plated aluminum bus bar. UL listed.
Additional Information
Additional Information
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Aluminum
- Cable Size: 6 to 2/0 6 to 1
- Color: Gray
- Cover/Lid Type: Flush
- Current Rating: 125 A
- Enclosure Type: NEMA 1
- Finish: Baked Enamel
- Includes: PK15GTAL Ground Bar and Surface Cover
- Interrupt Rating: 22 kA
- Mounting Type: Plug
- Number of Circuits: 40
- Number of Phases: 1
- Number Of Spaces: 20
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
