Square D | Our Item #:
MORG7058530
Model Number: HOM1224L125PGCVP - UPC : 785901864288

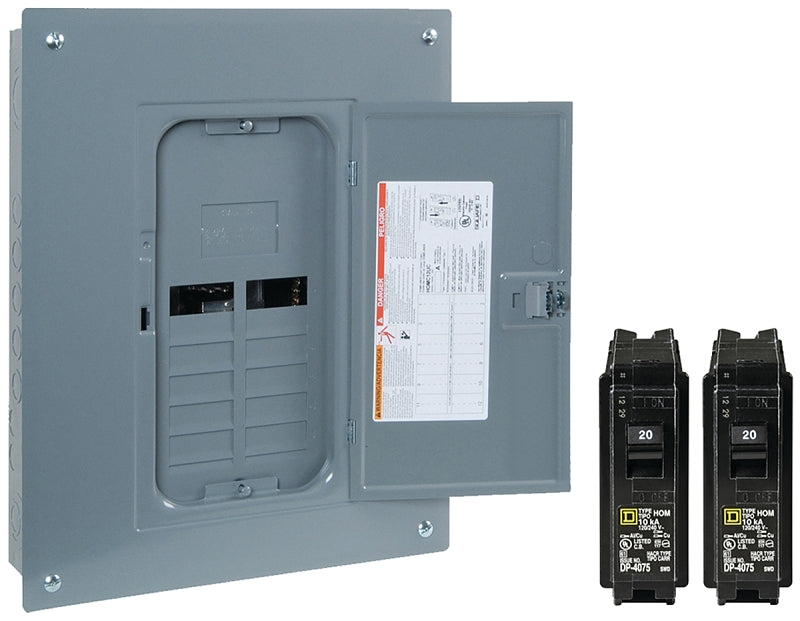

Square D Homeline HOM1224L125PGCVP Load Center, 125 A, 12 -Space, 24 -Circuit, Main Lug, NEMA 1 Enclosure, Gray
$82.53
$94.99
Unit price
/
Unavailable
Shipping calculated at checkout.
13% off
Square D Homeline HOM1224L125PGCVP Load Center, 125 A, 12 -Space, 24 -Circuit, Main Lug, NEMA 1 Enclosure, Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Square D Homeline HOM1224L125PGCVP Load Center, 125 A, 12 -Space, 2...
$82.53
$94.99
Unit price
/
Unavailable
Features
- Each pole space accepts full-size, tandem or quad breakers
- Overhead/underground feed simply by rotating the device before installing
Description
Description
Homeline value pack, plug on neutral. 12 space, 24 circuit. Main Lug 125 A. Includes cover and ground bar kit with load center. Includes two HOM120 circuit breakers.
Additional Information
Additional Information
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Aluminum
- Cable Size: 6 to 2/0 6 to 1 AWG
- Color: Gray
- Cover/Lid Type: Flush
- Current Rating: 125 A
- Enclosure Type: NEMA 1
- Finish: Baked Enamel
- Includes: (1) Grounding Bar (2) Circuit Breaker 1P 20 A 120/240 VAC
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Circuits: 24
- Number of Phases: 1
- Number Of Spaces: 12
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
