Blue Sea Systems  |  Our Item #: MLAN661-5045

Model Number: 5045 - UPC : 632085050450

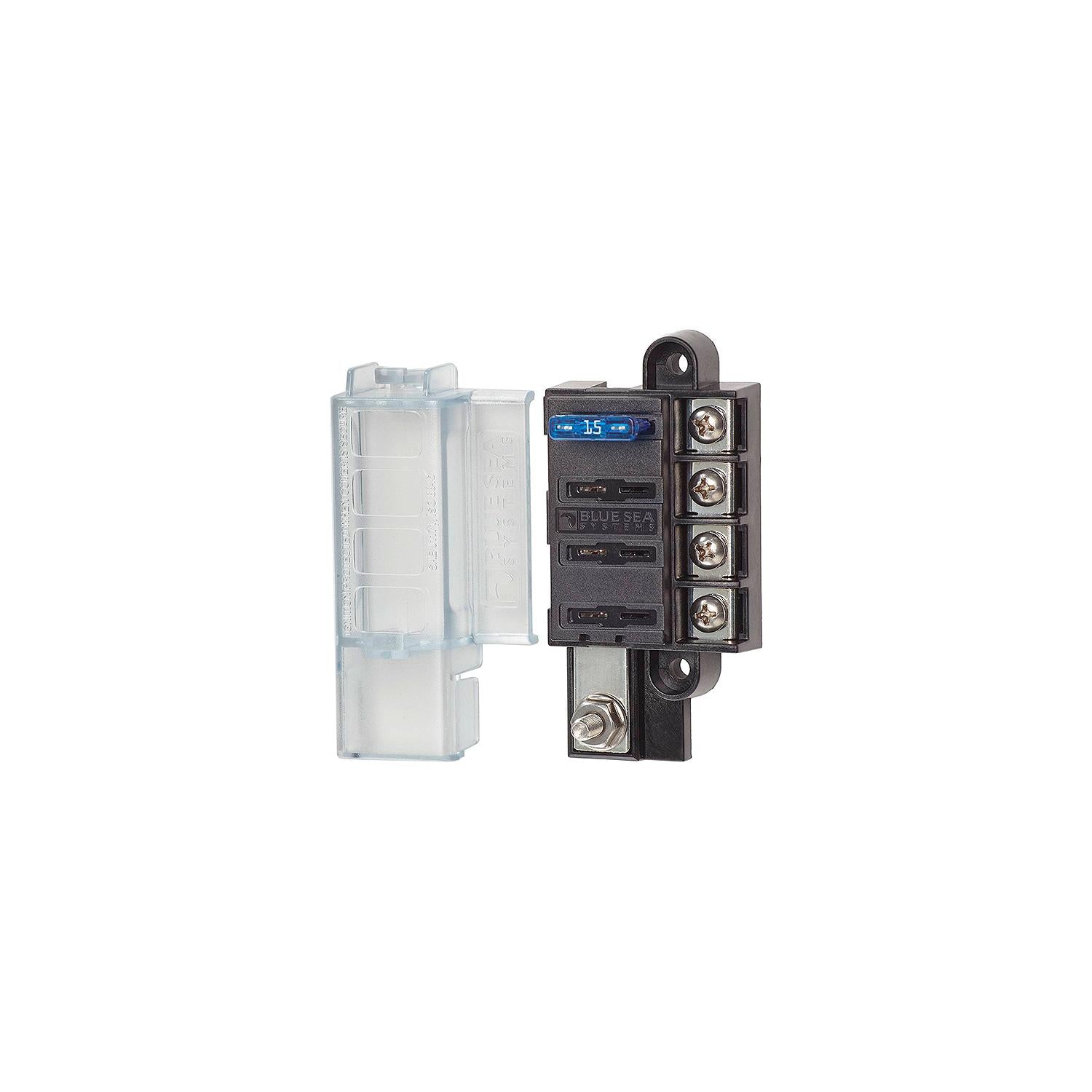

Blue Sea Systems ST Blade Compact Fuse Block - Common Source, 4 Circuits

Get special pricing! Apply for a business account today.

Apply Now
$34.91 $37.99
Shipping calculated at checkout.
8% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

Description
Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.
  • Compact common source fuse block
  • Accepts ATO® and ATC® fast acting blade fuses
  • Single side entry wiring
  • Ignition Protected - for use in a gasoline engine compartment
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Small format standard and custom labels available
  • Fuses sold separately Specifications:
  • Voltage Max. Operating: 32V DC
  • Amperage Max. Operating: 30A per circuit
  • Amperage Max. Operating: 100A per block
  • Fuse Type: ATO® or ATC® Fuses
  • Screw Terminal: #8-32 Screws with captive star lock washer
  • Mounting: #8 Screw (M4)

UPC: 632085050450
Model Number: 5045
