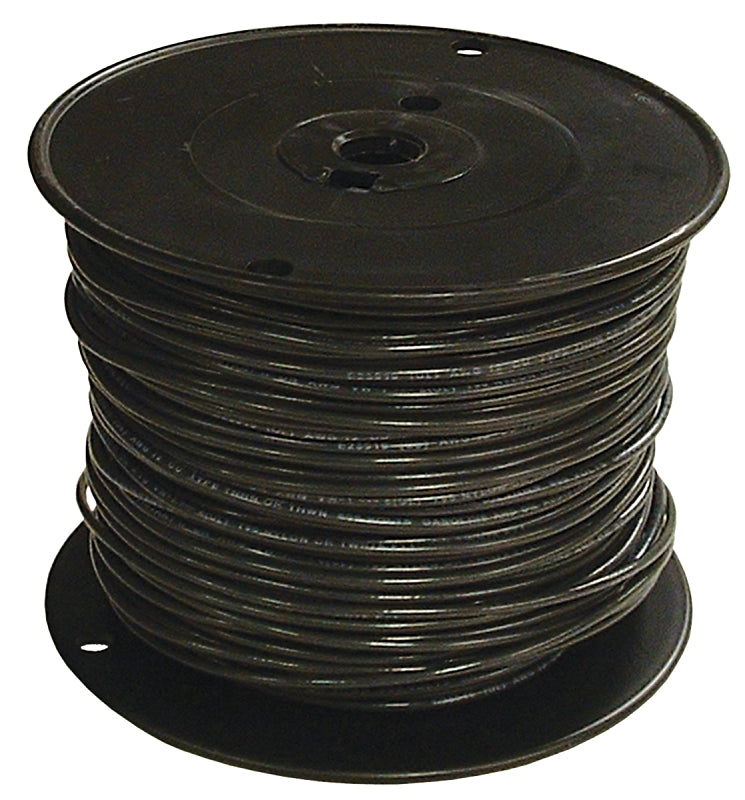

Southwire 12BK-SOLX500 Series Building Wire, Black Sheath, 12 AWG Wire, 1-Conductor, 500 ft L, Copper Conductor

Southwire SIMpull THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 V. SIMpull THHN copper conductors are designed to be installed without application of a pulling lubricant.
Unit: L FT
UPC: 032886892738
Model Number: 12BK-SOLX500

• Conductor Insulation: Thermoplastic
• Conductor Material: Copper
• Current Rating: 20 A
• Length: 500 in
• Number of Conductors: 1
• Operating Temperature: 90 deg C
• Sheath Color: Black
• Sheath Diameter: 119 mil
• Sheath Material: Nylon
• Stranded/Solid: Solid
• Strands per Conductor: 19
• Voltage Rating: 600 V
• Wire Size: 12 AWG
