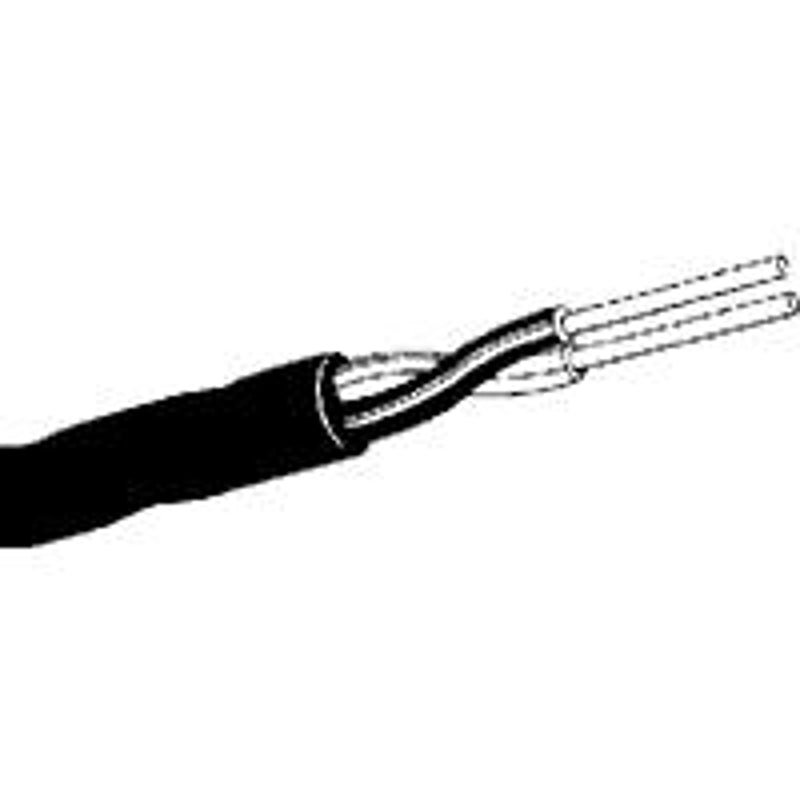

Southwire 65676902 Non-Plenum Electrical Wire, 8 -Conductor, Solid Copper Conductor, PVC Insulation, Brown Sheath

ETL Listed type CL2 power limited circuit cable is a general-purpose 8 conductor low voltage control cable. Construction provides solid uncoated copper conductors insulated with polyvinyl chloride (PVC) insulation twisted together without filler and covered with an ETL listed sunlight-resistant PVC jacket. Conductor colors are red, white, green, blue, yellow, brown, orange and black. Used for air conditioning controls, heat pumps, heating controls, thermostats and bell and alarm systems. For use in accordance with the NEC Article 725. Rated 60 deg C continuous in air. Solid 18/8 type CL2. Meets UL 1581 vertical flame tray test. 15 mil jacket thickness, approximately 202 mil overall cable diameter.
Unit: BX
UPC: 032886438622
Model Number: 65676944

• Conductor Insulation: PVC
• Conductor Material: Solid Copper
• Number of Conductors: 8
• Operating Temperature: 60 deg C
• Sheath Color: Brown
• Type: Type CL-2
• Voltage Rating: 150 V
