Southwire | Our Item #:
MORG2700821
Model Number: 552050407 - UPC : 029892352110

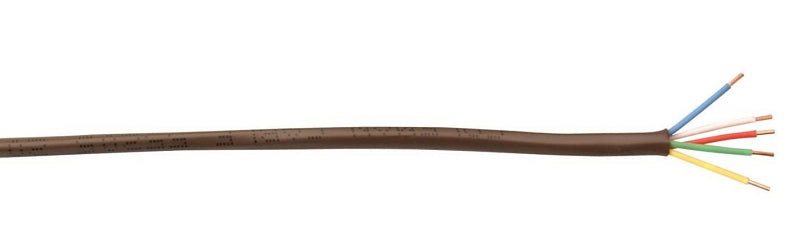

CCI 552050407 Thermostat Wire, 20 AWG Wire, 5 -Conductor, Copper Conductor, Polypropylene Insulation, PVC Sheath
$83.82
$164.15
Unit price
/
Unavailable
Shipping calculated at checkout.
49% off
CCI 552050407 Thermostat Wire, 20 AWG Wire, 5 -Conductor, Copper Conductor, Polypropylene Insulation, PVC Sheath is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
CCI 552050407 Thermostat Wire, 20 AWG Wire, 5 -Conductor, Copper Co...
$83.82
$164.15
Unit price
/
Unavailable
Features
- 0.015 in jacket thickness
- 0.006 in insulation thickness
- Parallel lay length
- Smooth jacket eliminates snagging and tearing
- PVC jacket, polypropylene insulation ensures excellent strip ability
- Sunlight resistant jacket
Description
Description
CCI Thermostat Wire, Type CL-2, 20 AWG Wire, 5 Conductors, Copper Conductor, Polypropylene Conductor Insulation, Solid, PVC Sheath, Brown Sheath, 150 V, 10.73 Ohm Resistance, -20 to 60 deg C Operating
Unit: EA
UPC: 029892352110
Model Number: 552050407
Unit: EA
UPC: 029892352110
Model Number: 552050407
Additional Information
Additional Information
- Conductor Insulation: Polypropylene
- Conductor Material: Copper
- Number of Conductors: 5
- Operating Temperature: -20 to 60 deg C
- Resistance: 10.73 Ohm
- Sheath Color: Brown
- Sheath Material: PVC
- Stranded/Solid: Solid
- Type: Type CL-2
- Voltage Rating: 150 V
- Wire Size: 20 AWG
Application: For thermostat control applications
