Southwire  |  Our Item #: MORG2700805

Model Number: 552030507 - UPC : 029892351939

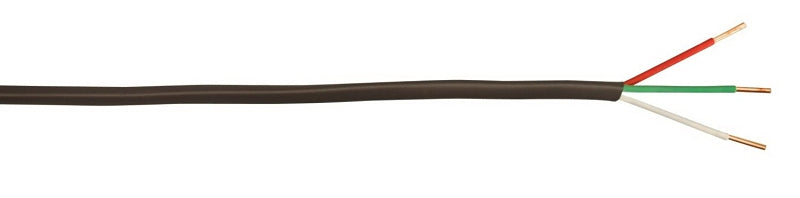

CCI 552030507 Thermostat Wire, 20 AWG Wire, 3 -Conductor, Copper Conductor, Polypropylene Insulation, PVC Sheath

$108.42 $212.25
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • 0.014 in jacket thickness
  • 0.006 in insulation thickness
  • Parallel lay length
  • Smooth jacket eliminates snagging and tearing
  • PVC jacket, polypropylene insulation ensures excellent strip ability
  • Sunlight resistant jacket

Description
CCI Thermostat Wire, Type CL-2, 20 AWG Wire, 3 Conductors, Copper Conductor, Polypropylene Conductor Insulation, Solid, PVC Sheath, Brown Sheath, 150 V, 10.73 Ohm Resistance, -20 to 60 deg C Operating
Unit: EA
UPC: 029892351939
Model Number: 552030507

Additional Information

  • Conductor Insulation: Polypropylene
  • Conductor Material: Copper
  • Number of Conductors: 3
  • Operating Temperature: -20 to 60 deg C
  • Resistance: 10.73 Ohm
  • Sheath Color: Brown
  • Sheath Material: PVC
  • Stranded/Solid: Solid
  • Type: Type CL-2
  • Voltage Rating: 150 V
  • Wire Size: 20 AWG
