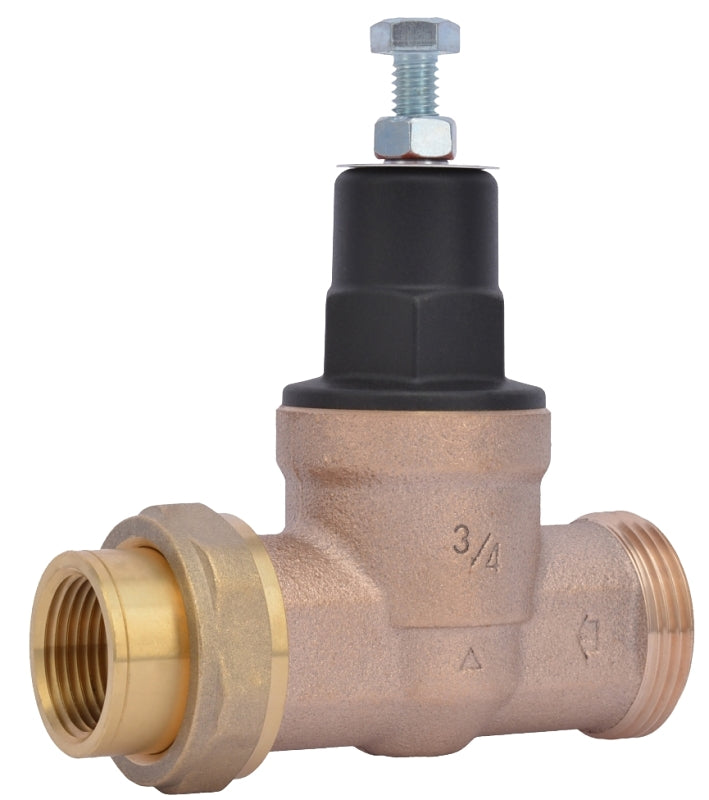

SharkBite EB45 Series 23883-0045 Pressure Regulating Valve, 3/4 in Connection, Single Union x NPT, Bronze Body

The EB-45 Series is a lead-free one 1/2 cartridge based pressure reducing and regulating valve with a bronze body. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge based valve. The EB-45 is assembled using modular construction methods and features end connections threaded for both FIP and union in 1/2 in through 2 in sizes. The EB-45 is intended for use where supply line pressure does not exceed 300 psi (400 psi 1/2 in, 3/4 in and 1 in). The EB-45 pressure regulators are supplied by the factory with a standard delivery setting of 45 psi. The outlet pressure can be adjusted from 10 to 70 psi without changing the spring. This regulator is suited for either cold or hot (to 180 deg F) water service.
Unit: EA
UPC: 697285238831
Model Number: 23883-0045

• Body Material: Bronze
• Connection Size: 3/4 in
• Connection Type: Single Union x NPT
• Dimensions: 4.92 in L x 5.12 in H
• Media: Water
• Operating Pressure: 400 psi
• Softgoods material: EPDM/Polyphenylene
• Temperature Rating: 33 to 180 deg F
• Trim Material: Iron/Steel/Stainless Steel
