3M  |  Our Item #: MORG5214556

Model Number: T/R+ - UPC : 051128544549

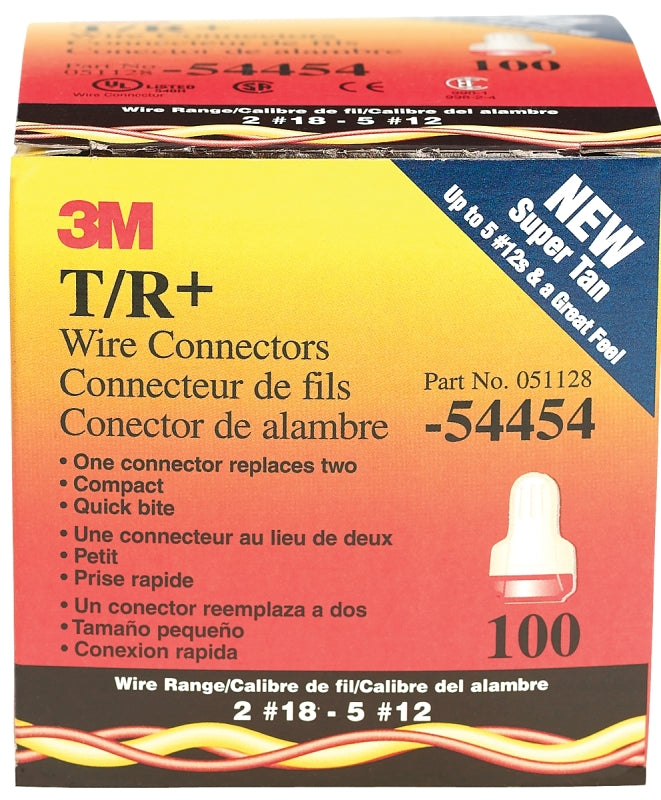

3M Performance Plus T/R+ Wire Connector, 22 to 8 AWG Wire, Steel Contact, Red/Tan

Get special pricing! Apply for a business account today.

Apply Now
$30.75 $38.85
Shipping calculated at checkout.
21% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Offers a strong bite in a pigtail application for a long-lasting connection
  • One connector replaces three (yellow, red and tan) in the majority of all field applications
  • The T/R+ is dual color-coded so this one connector replaces your traditional tan and red connectors
  • Ideal for many applications including industrial and residential construction, automotive and appliance applications
  • Use with copper conductors ranging from 22 to 8 AWG
  • Built with polypropylene and thermoplastic elastomer material
  • Tan/red connector is flame-retardant and handles well in temperatures up to 221 deg F
  • Use on building wire rated 600 V and on signs, fixtures or luminaires rated 1000 V

Description
3M Performance Plus wire connectors T/R+ are constructed to work with a wire range between 2 #18 to 5 #12 AWG. The connectors feature a uniquely flexible spring that provides ample expansion capacity and a strong, reliable grip. Their expanded cable range allows three Performance Plus connectors to replace eight standard connectors, improving convenience at work by using fewer parts for a larger number of wire combinations. In addition, the flexible skirt helps reduce copper exposure for enhanced reliability and the connectors are UL Listed for 600 V on copper wire. 3M Performance Plus Wire Connectors T/R+, along with the other products in the product suite, help electricians make clean, reliable connections quickly and efficiently. The connectors simplify splicing by providing a solution that helps provide a secure termination without stripping or twisting wires. To meet your specific installation requirements, they are available in five color and wire range options, including O/B+ (orange/blue) 2 #22 to 3 #12 AWG, T/Y+ (tan/yellow) 2 #22 to 3 #12 AWG, R/Y+ (red/yellow) 2 #18 to 2 #8 AWG, T/R+ (tan/red) 2 #18 to 5 #12 AWG and B/G+ (blue/gray) 4 #14 to 6 #10 AWG. Discover the performance capabilities of 3M Performance Plus Wire Connectors on your next application.
Unit: BX100
UPC: 051128544549
Model Number: T/R+

Additional Information

  • Color: Red/Tan
  • Contact Material: Steel
  • Housing Material: Polypropylene/Thermoplastic Elastomer
  • Mounting Type: Screw
  • Temperature Rating: 221 deg F
  • Voltage Rating: 600 V
  • Width: 0.76
  • Wire Size: 22 to 8 AWG
