Eaton Wiring Devices | Our Item #:
MORG3114436
Model Number: TR274LA - UPC : 032664750243

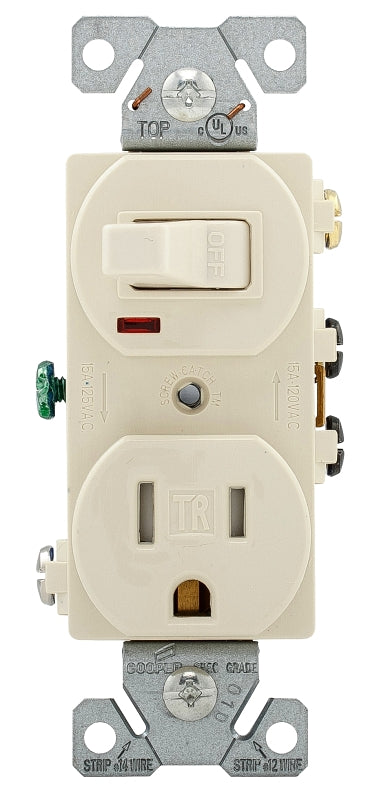

Eaton TR274LA Combination Switch/Receptacle, 2-Pole, 15 A, 120 V Switch, 125 V Receptacle, NEMA: NEMA 5-15R
Get special pricing! Apply for a business account today.
Apply Now
Sale price
$11.34
Regular price
$13.69
Unit price
Unavailable
Shipping calculated at checkout.
17% off
Eaton TR274LA Combination Switch/Receptacle, 2-Pole, 15 A, 120 V Switch, 125 V Receptacle, NEMA: NEMA 5-15R is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Eaton TR274LA Combination Switch/Receptacle, 2-Pole, 15 A, 120 V Sw...
Sale price
$11.34
Regular price
$13.69
Unit price
Unavailable
Eaton Wiring Devices | Our Item #:
MORG3114436
Sale price
$11.34
Regular price
$13.69
Unit price
Unavailable
Shipping calculated at checkout.
Eaton TR274LA Combination Switch/Receptacle, 2-Pole, 15 A, 120 V Switch, 125 V Receptacle, NEMA: NEMA 5-15R is backordered and will ship as soon as it is back in stock.
Features
- Steel mounting strap is zinc-plated for added corrosion resistance
- Convenient patented built-in wire stripper speeds installation
- Back wire clamps on side terminals provide for easy installation of #12 and 14 AWG wire
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Break off provision for wiring both devices on same circuit or on separate circuits
- Triple wipe blade contacts and double-wipe ground contacts to insure long term plug retention
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
Description
Description
Traditional heavy-duty-grade combination switch with receptacle features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR274 features a neon pilot light which is on when switch is on. Switch is horsepower-rated for motor loads per UL 20. Thermoplastic toggle, top and back body are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.
Unit: BX
UPC: 032664750243
Model Number: TR274LA
Unit: BX
UPC: 032664750243
Model Number: TR274LA
Additional Information
Additional Information
- Color: Light Almond
- Contact Material: Brass
- Current Rating: 15 A
- Dielectric Strength: 2000 V
- Dimensions: 1.08 in D x 4.19 in H
- Material: PVC
- Mounting Type: Flush
- NEMA Configuration: NEMA 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60 deg C
- Terminal Type: Screw
- Type: Heavy-Duty
- Voltage Rating: 120 V Switch 125 V Receptacle
- Wire Size: 12 to 14 AWG
- Wiring Type: Back Side
