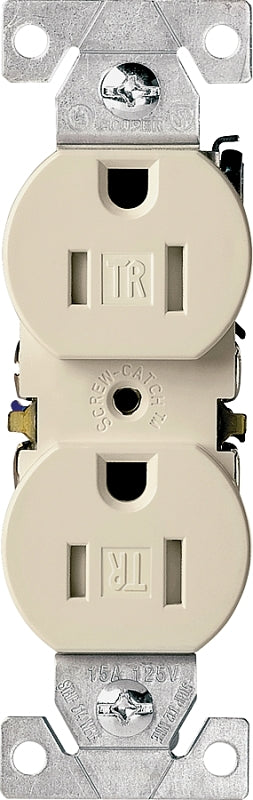

Eaton Wiring Devices TR270V Duplex Receptacle, 2 -Pole, 15 A, 125 V, Push, Side Wiring, NEMA: 5-15R, Ivory

Tamper-resistant duplex receptacles provide compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. TR designation provides visual identification. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps with patented built-in wire stripper for #14 and #12 wire to speed installation. Side-wire terminals accept up to #10 solid or stranded wire and push-in terminals accept #14 solid wire.
Unit: EA
UPC: 032664666520
Model Number: TR270V

• Color: Ivory
• Current Rating: 15 A
• Dimensions: 1.24 in L x 0.79 in W x 4 in H
• Material: Thermoplastic
• Mounting Type: Flush
• NEMA Configuration: 5-15R
• Number of Poles: 2
• Number Of Wires: 3
• Operating Temperature: -4 to 140 deg F
• Voltage Rating: 125 V
• Wire Size: 14 to 10 AWG
• Wiring Type: Push Side
