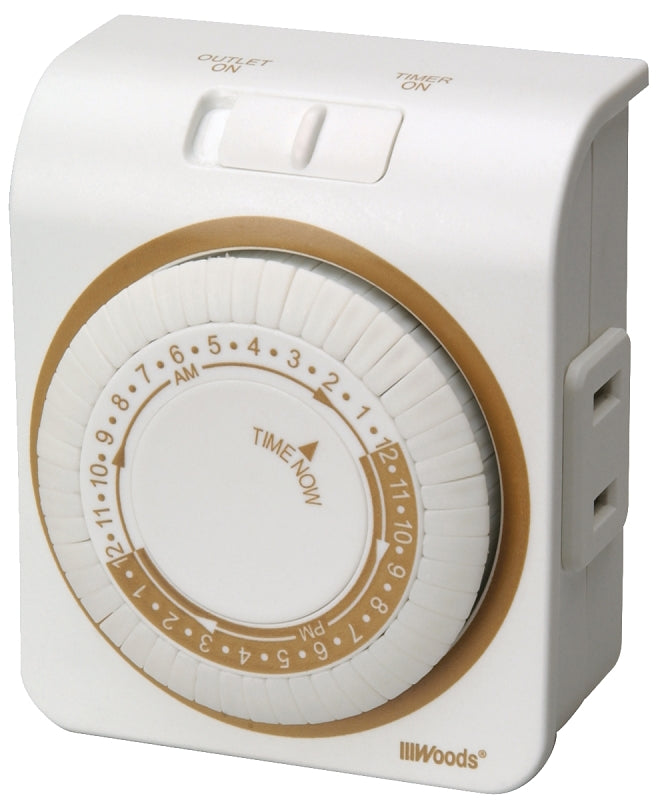

Woods 50000 Programmable Mechanical Timer, 15 A, 125 V, 1875 W, 24 hr Time Setting, 24 On/Off Cycles Per Day Cycle

Multiple daily programming, cycle repeats every 24 hrs. Plugs directly into wall outlet. Up to 24 On/Off settings per day. Instruction slot and manual override switch. Programmable in 30 mins intervals. Capacity 15 A (1875 W) resistive/8 A, 1000 W tungsten/5 A ballast, 125 V, 60 Hz. Pins stay in the timer, never get lost. CSA certified C/US, CFL compatible. 2-1/2 in D x 5 in W x 6-1/4 in H, 0.22 lb. White with taupe silkscreen.
Unit: EA
UPC: 078693500008
Model Number: 50000

• Color: White
• Current Rating: 15 A
• Cycle Time: 24 On/Off Cycles Per Day
• Depth: 2-1/2 in
• Frequency Rating: 60 Hz
• Height: 6.25 in
• HP Rating: 3/4 hp
• Installation Type: Plug-In
• Number of Poles: 2
• Time Setting: 24 hr
• Type: Programmable
• Voltage Rating: 125 V
• Wattage Rating: 1875 W
• Width: 5 in

Application: For commercial and residential settings such as ceiling fans, overhead lighting, porch lighting and watering equipment
