Gb  |  Our Item #: MORG1746072

Model Number: 16-086 - UPC : 032076160869

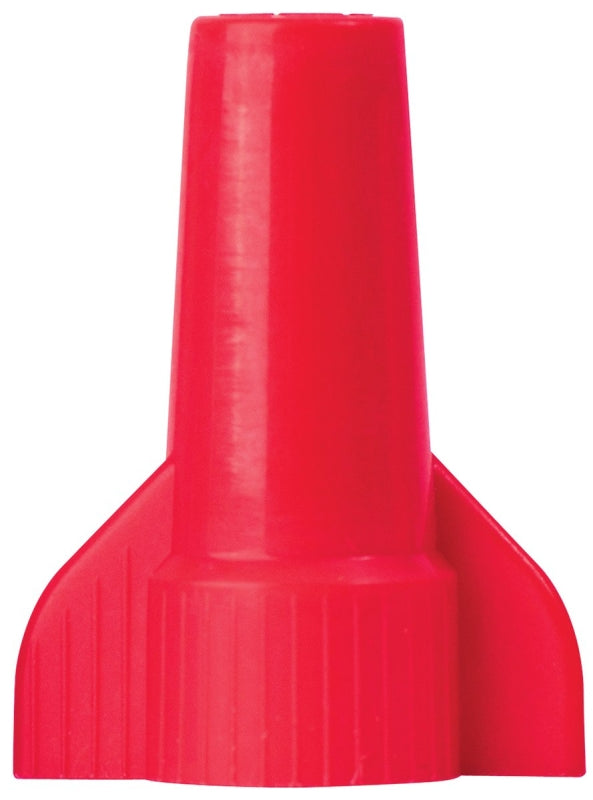

Gardner Bender WingGard 86 Series 16-086 Wire Connector, 22 to 6 AWG Wire, Steel Contact, Thermoplastic Housing Material

Get special pricing! Apply for a business account today.

Apply Now
$15.62 $19.99
Shipping calculated at checkout.
22% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
  • Square wire zinc-plated spring instantly adjusts to the shape and size of the splice
  • Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
  • High-dielectric shell features deep skirt design to prevent exposure of bare wire
  • Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
  • Copper to copper connections only

Description
Gardner Bender wire connectors are engineered to exceed the expectations of professional electricians. Ideal for commercial or residential applications GB wire connectors offer world-class quality, performance and application versatility. GB's WingGard twist on wire connectors offer unsurpassed quality and durability in a high-leverage, easy on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one-size can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.
Unit: PK125
UPC: 032076160869
Model Number: 16-086

Additional Information

  • Color: Red
  • Contact Coating: Zinc
  • Contact Material: Steel
  • Housing Material: Thermoplastic
  • Length: 1-1/4
  • Mounting Type: Screw
  • Temperature Rating: 105 deg C
  • Voltage Rating: 300/600 V
  • Width: 29/32
  • Wire Size: 22 to 6 AWG
