Eaton Wiring Devices  |  Our Item #: MORG1452879

Model Number: TR7765W-KB-L - UPC : 032664767128

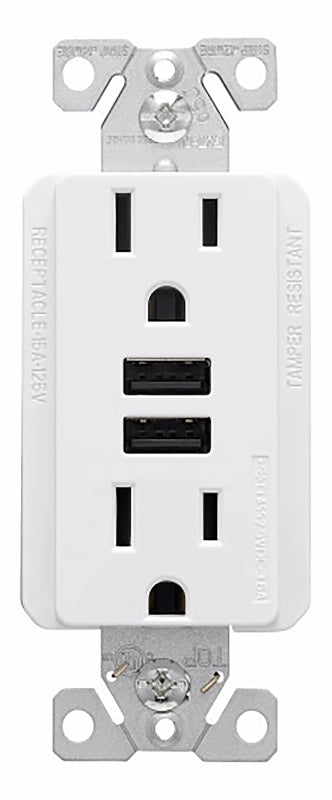

Eaton TR7765W-KB-L Series USB Combination Receptacle, White, 2-Pole, 15 A at 125 VAC, 3.6 A at 5 VDC, 125 VAC, 5 VDC

Get special pricing! Apply for a business account today.

Apply Now
$29.10 $33.55
Shipping calculated at checkout.
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Dual USB ports charges most compatible USB electronic devices
  • Tamper-resistant shutters provide compliance with 2014 NEC Article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
  • Replaces a standard duplex receptacle
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
  • Steel mounting strap is zinc-plated for added corrosion resistance
  • Convenient patented built-in wire strippers speed installation

Description
Eaton USB Combination Receptacle, 125 VAC, 5 VDC, 15 A at 125 VAC, 3.6 A at 5 VDC, Frequency Rating: 140 kHz, Number of Poles: 2, Number of Wires: 3, Number of USB Ports: 2, Wiring Type: Screw Terminals, Side and Back, Wire Size: 14 to 12 AWG, NEMA Configuration: NEMA 5-15R, Operating Temperature: -4 to 140 deg F, Thermoplastic, White, Dimensions: 4.19 in H x 1.3 in W x 1.4 in D

Additional Information

  • Color: White
  • Current Rating: 15 A at 125 VAC 3.6 A at 5 VDC
  • Dimensions: 4.19 in H x 1.3 in W x 1.4 in D
  • Frequency Rating: 140 kHz
  • Material: Thermoplastic
  • NEMA Configuration: NEMA 5-15R
  • Number of Poles: 2
  • Number of USB Ports: 2
  • Number Of Wires: 3
  • Operating Temperature: -4 to 140 deg F
  • Voltage Rating: 125 VAC 5 VDC
  • Wire Size: 14 to 12 AWG
  • Wiring Type: Screw Terminals Side and Back
