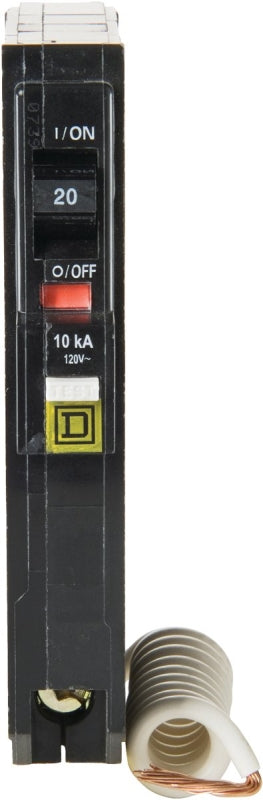

Square D QO120CAFIC Miniature Circuit Breaker, AFCI, 20 A, 1-Pole, 120/240 V, Fixed Trip, Plug Mounting

Combination CAFCI 3/4 in single-pole circuit breaker, designed for overload and over-current protection of an electrical system. thermal magnetic tripping mechanism. Designed to detect arcs that are caused by damaged, aged or improperly used wires or cords and to disconnect the power. Visi-Trip indicator to identify which circuit is out in the load center. With time saver Diagnostics, advanced trip indication technology, identifying the type of fault that last occurred. 10 kA interrupting rating. Uses one space per breaker. 120 VAC. UL Listed. Carded.
Unit: EA
UPC: 785901698180
Model Number: QO120CAFIC

• Current Rating: 20 A
• Dimensions: 2-29/32 in L x 3/4 in W x 4-3/4 in H
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 1
• Number Of Spaces: 1
• Operating Frequency: 50/60 Hz
• Suitable for: NQ and NQOD Panel Boards OEM Mounting Bases QO Load Centers and Speed-D Switchboard Distribution Panels
• Terminal Type: Pressure Contact
• Trip Type: Fixed
• Type: AFCI
• Voltage Rating: 120/240 V
• Wire Size: 12 to 8 14 to 8 AWG
