Square D  |  Our Item #: MORG1186436

Model Number: NC015CP - UPC : 047569176821

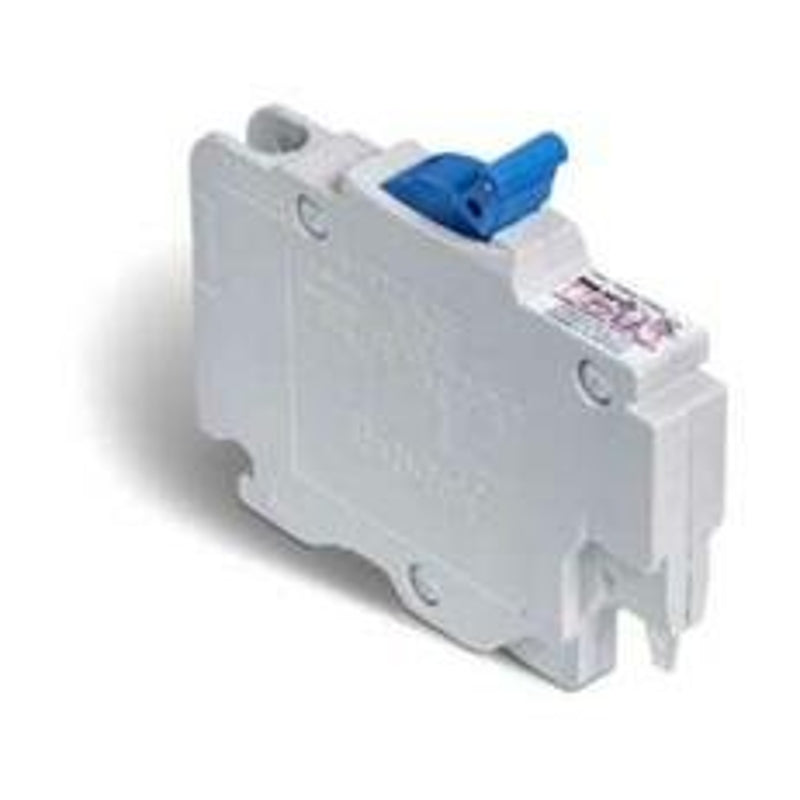

Square D Stab-lok NC015CP Circuit Breaker, Mini, Type NC, 15 A, 1 -Pole, 120 V, Plug Mounting, White

Get special pricing! Apply for a business account today.

Apply Now
$33.99 $50.75
Shipping calculated at checkout.
33% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Provides overload and short circuit protection
  • Color-coded handle identification is quick and easy with separate colors representing different ampere ratings
  • Type NC with Robertson/slot screws
  • Thermal magnetic trip protection
  • Exclusive line side stab connection
  • Trip-free operation
  • Arc-resistant case
  • For overload and short circuit protection

Description
Stab-lok breakers are fully interchangeable with all past breakers and deliver the same proven quality. The unique Stab-lok breaker design of only a 1/2 in wide per pole, allows for the reduction of the size and weight of the loadcenter. These breakers are CSA approved to work only in federal pioneer branded residential panel.
Unit: EA
UPC: 047569176821
Model Number: NC015CP

Additional Information

  • Actuator Type: Magnetic Thermal
  • Color: White
  • Current Rating: 15 A
  • Dimensions: 0.5 in W x 3 in D x 3.4 in H
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug
  • Number of Poles: 1
  • Number Of Spaces: 2
  • Operating Temperature: 40 deg C
  • Terminal Type: Lug
  • Type: Mini Type NC
  • Voltage Rating: 120 V
  • Wire Size: 14 to 6 AWG
