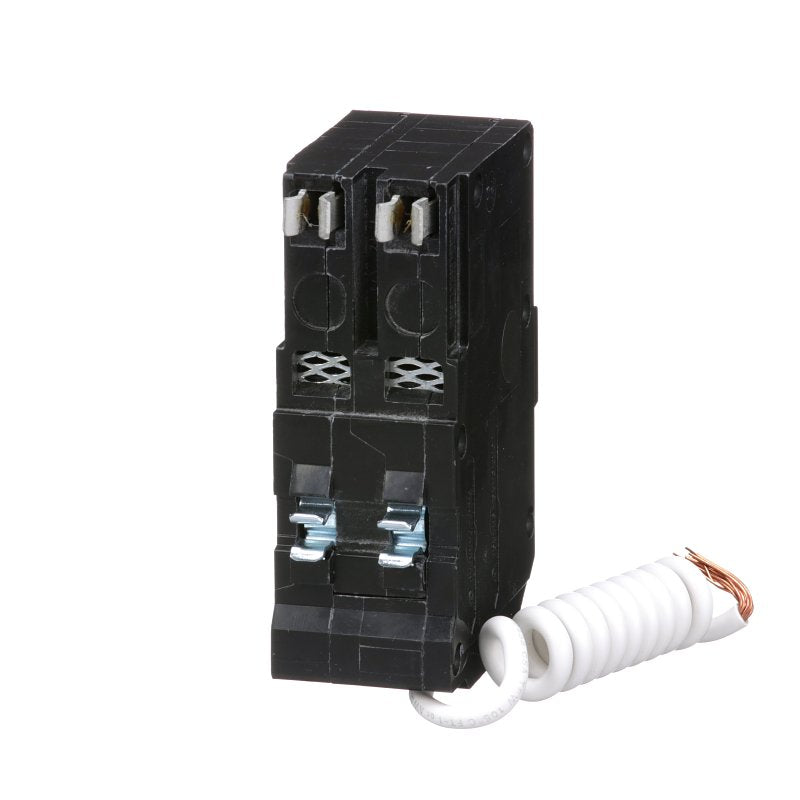

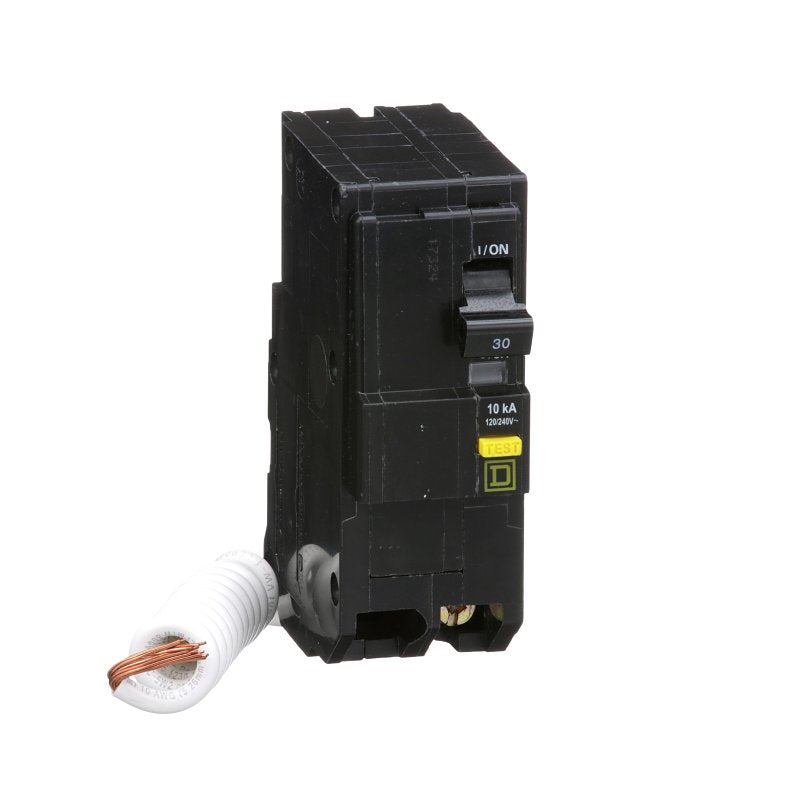

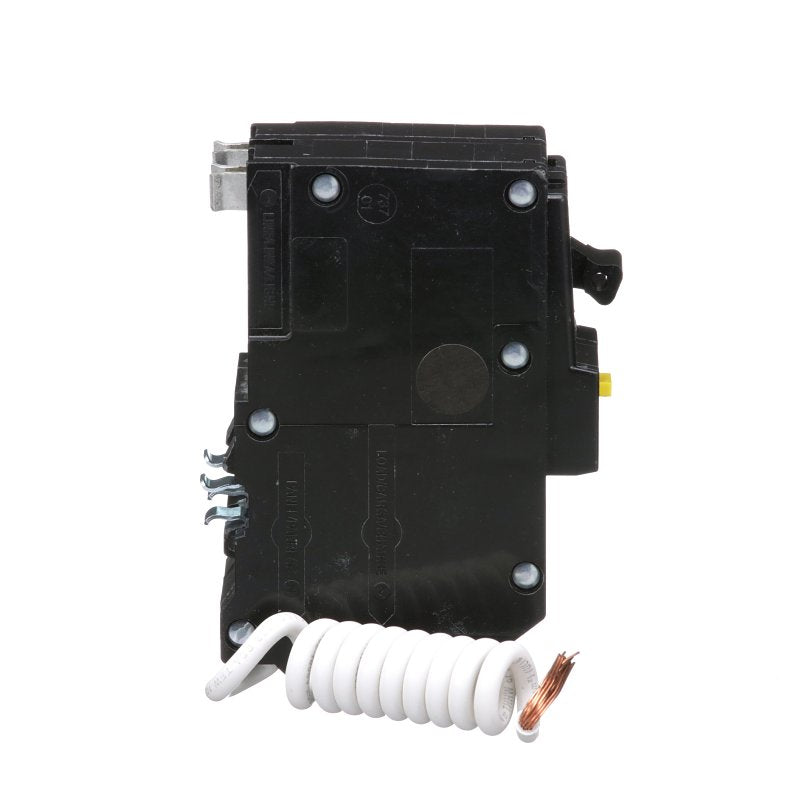

Square D QO QO230GFIC Miniature Circuit Breaker, Ground Fault, 30 A, 2-Pole, 120/240 VAC, Plug-In, Pack of 3

QO two-pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC and DC systems. These circuit breakers have an over center, trip-free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2-pole QO circuit breaker is rated at 30 A at 120/240 VAC. This unit provides 10 kA breaking capacity and plug-in mounting. This product includes a 6 mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is in clam packaging.
Unit: EA
UPC: 785901508656
Model Number: QO230GFIC

• Actuator Type: Quick-Break Quick-Make Toggle
• Current Rating: 30 A
• Dimensions: 4.1 in H x 1.5 in W x 2.9 in D
• Interrupt Rating: 10 kA
• Mounting Type: Plug-In
• Number of Poles: 2
• Number Of Spaces: 2
• Operating Frequency: 60 Hz
• Operating Temperature: 104 deg F
• Type: Ground Fault
• Voltage Rating: 120/240 VAC
