Square D  |  Our Item #: MORG7576077

Model Number: QO220GFICP - UPC : 047569838316

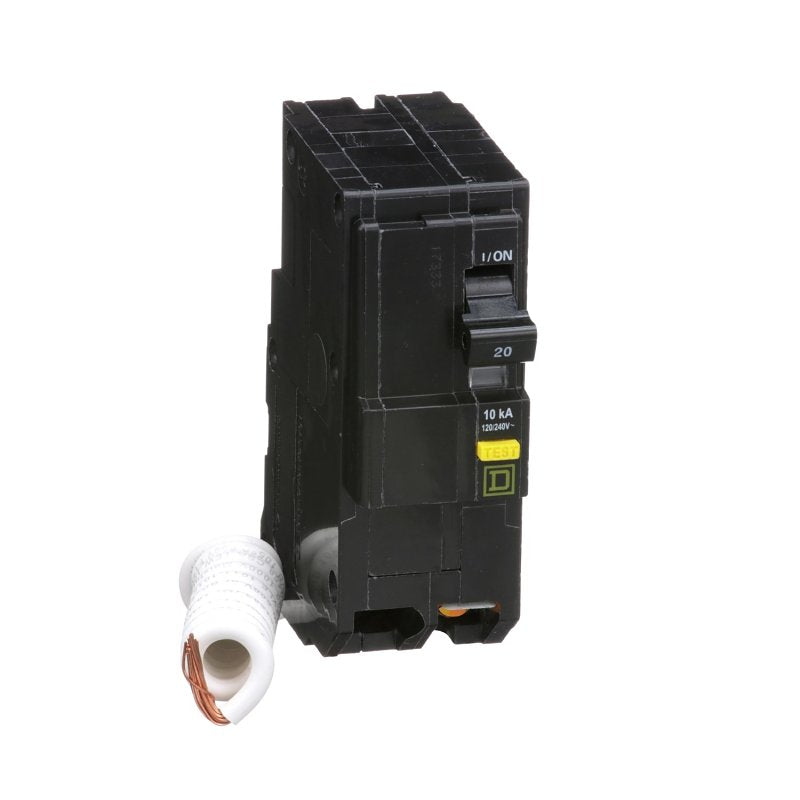

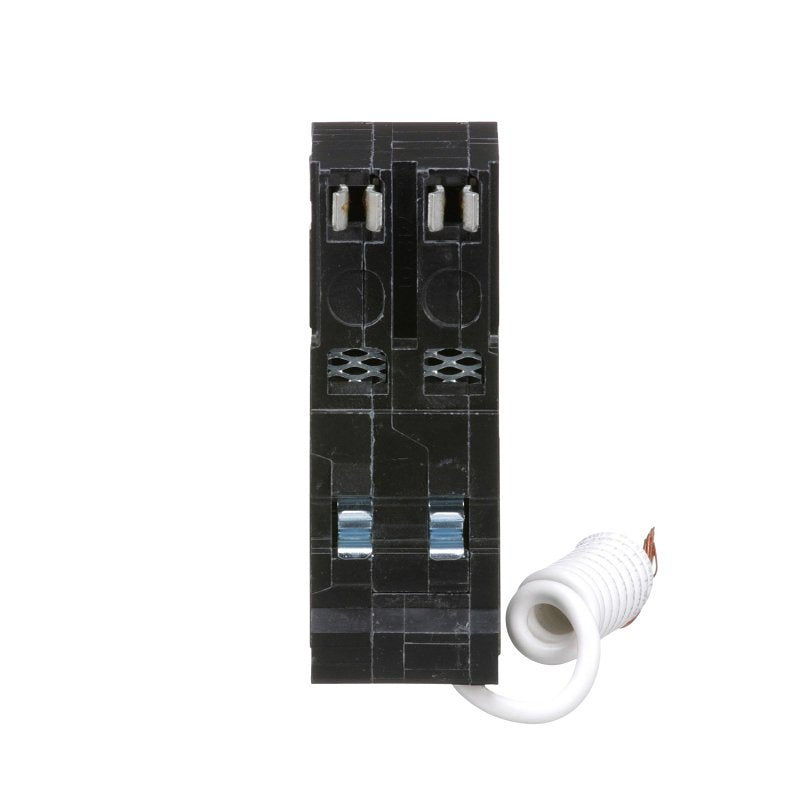

Square D QO QO220GFICP Circuit Breaker, Mini, 20 A, 2 -Pole, 120/240 VAC, Plug Mounting

Get special pricing! Apply for a business account today.

Apply Now
$197.46 $227.15
Shipping calculated at checkout.
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • QO and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication
  • The tripping mechanisms in two- and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously
  • QO and QOB circuit breakers have Visi-Trip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit
  • The Visi-Trip indicator is only visible when the circuit breaker has tripped
  • The circuit breaker can be reset by pushing the handle to OFF and then to ON
  • When designing an electrical distribution system, overcurrent protective devices are generally selected based on performance requirements
  • Factors influencing this selection include system voltage, continuous current, interrupting rating and frequency
  • The continuous current rating of a circuit breaker is the maximum current in amperes which a device will carry continuously without exceeding the specified allowable temperature rise
  • The interrupting rating of a circuit breaker is the highest current at rated voltage that the circuit breaker is intended to interrupt under standard test conditions

Description
QO (plug-on) and QOB (bolt-on) one, two and three pole thermal-magnetic circuit breakers provide overcurrent protection and switching on AC and DC systems. Plug-on QO circuit breakers are for use in QO load centers, NQ and NQOD panelboards, OEM mounting bases and Speed-D switchboard distribution panels. Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards.
Unit: EA
UPC: 047569838316
Model Number: QO220GFICP

Additional Information

  • Actuator Type: Magnetic Thermal
  • Current Rating: 20 A
  • Dimensions: 1.5 in W x 2.91 in D x 4.12 in H
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug
  • Number of Poles: 2
  • Number Of Spaces: 2
  • Operating Frequency: 50/60 Hz
  • Operating Temperature: 104 deg F
  • Suitable for: QO Series Load Center
  • Terminal Type: Pressure Plate
  • Trip Sensitivity: 6 mA
  • Type: Mini
  • Voltage Rating: 120/240 VAC
  • Wire Size: 14 to 8 12 to 8 AWG
