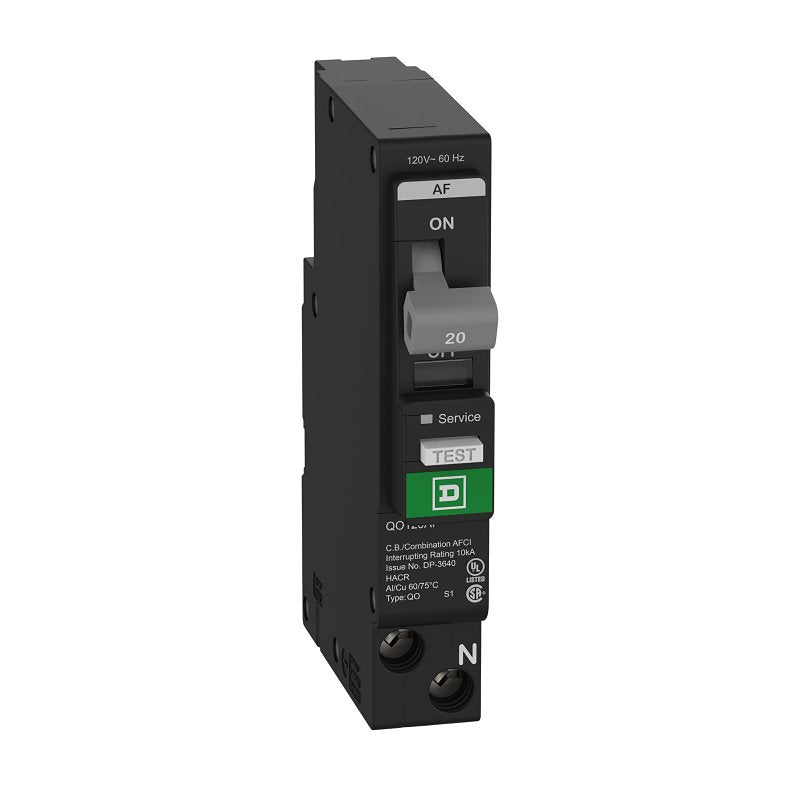

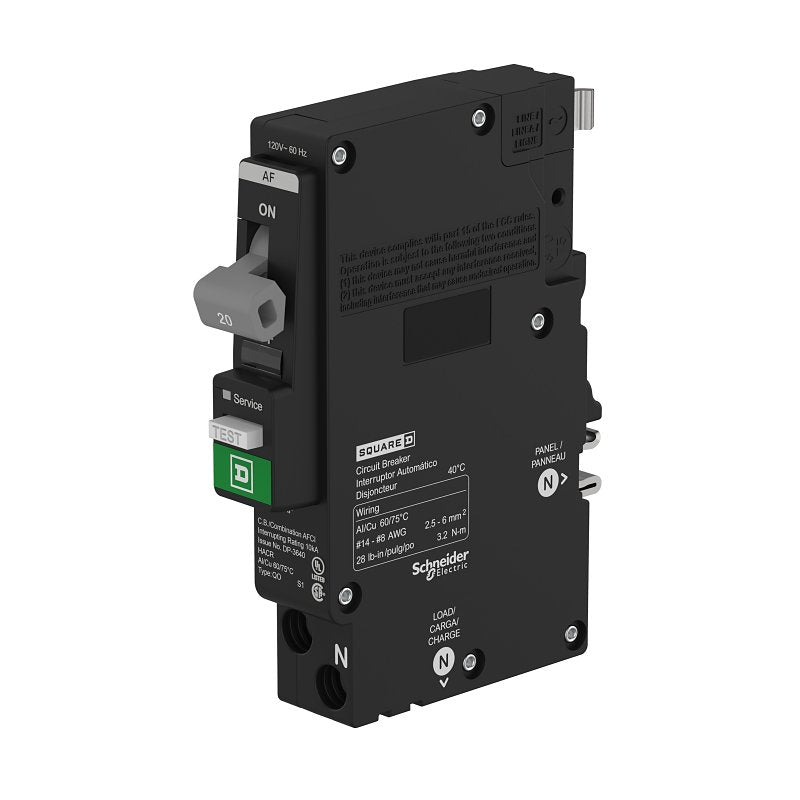

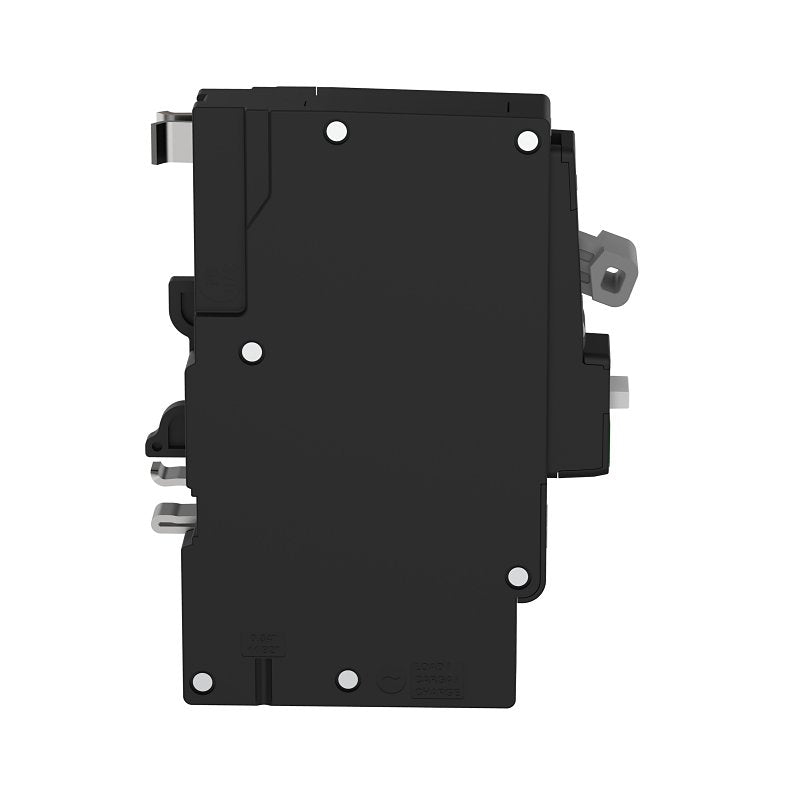

Square D QO QO120PAFC Miniature Circuit Breaker, Combination Arc Fault, 20 A, 1-Pole, 120 VAC, Plug-In, Pack of 3

QO one-pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC and DC systems. These circuit breakers have an over center, trip-free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This one-pole QO circuit breaker is rated at 20 A at 120 VAC. This unit provides 10 kA breaking capacity and plug-in mounting. This product includes a combination arc fault with plug-on neutral. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is in clam packaging.
Unit: EA
UPC: 785901780397
Model Number: QO120PAFC

• Actuator Type: Quick-Break Quick-Make Toggle
• Current Rating: 20 A
• Dimensions: 2.72 in H x 0.75 in W x 4.1 in D
• Interrupt Rating: 10 kA
• Mounting Type: Plug-In
• Number of Poles: 1
• Number Of Spaces: 1
• Operating Frequency: 60 Hz
• Operating Temperature: 104 deg F
• Terminal Type: Plug-On Neutral
• Type: Combination Arc Fault
• Voltage Rating: 120 VAC
• Wire Size: 14 to 8 AWG Copper 12 to 8 AWG Aluminum
