Square D  |  Our Item #: MORG6994677

Model Number: HOM816L125PRB - UPC : 785901973997

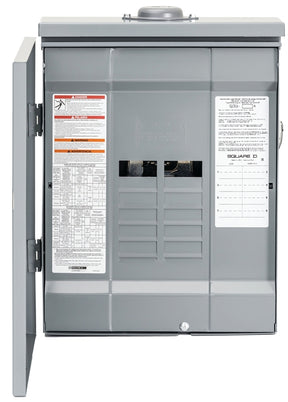

Square D Homeline HOM816L125PRB Load Center, 125 A, 8-Space, 16-Circuit, Main Lug, NEMA 3R Outdoor Enclosure, Plug

Get special pricing! Apply for a business account today.

Apply Now
$86.54 $99.59
Shipping calculated at checkout.
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Designed for fast installation, reliability and superior circuit protection
  • Faster installation fewer connections
  • Saves wire - fully-distributed split neutral bar
  • Frees gutter space - No pigtails
  • Easier troubleshooting - time-saver diagnostics provide additional circuit information at the touch of a button
  • Faster and easier wiring all spaces accept tandems

Description
Main lug outdoor load center, 125 A 8 space/16 circuit. Convertible to a main breaker. Single-phase load center. Overhead or underground feed options. Plated aluminum bus bar. UL listed.
Unit: EA
UPC: 785901973997
Model Number: HOM816L125PRB

Additional Information

  • Breaker/Load Center Type: Main Lug
  • Bus Bar Material: Aluminum
  • Cable Size: 6 to 2/0 6 to 1
  • Color: Gray
  • Cover/Lid Type: Surface
  • Current Rating: 125 A
  • Enclosure Type: NEMA 3R Outdoor
  • Finish: Baked Enamel
  • Interrupt Rating: 22 kA
  • Mounting Type: Plug
  • Number of Circuits: 16
  • Number of Phases: 1
  • Number Of Spaces: 8
  • Voltage Rating: 120/240 V
  • Wiring Configuration: 3-Wire
