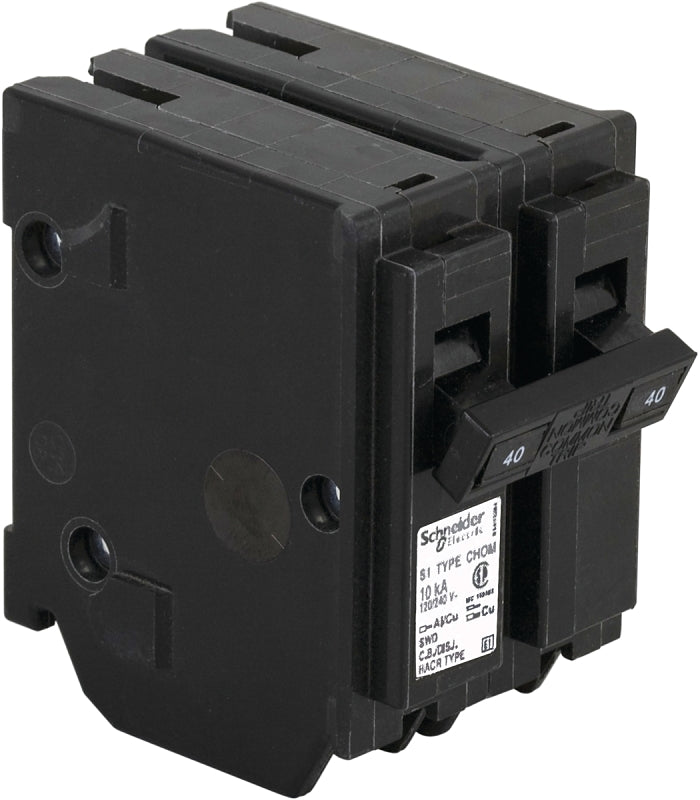

Square D Homeline CHOM240CP Circuit Breaker, Mini, Standard, 40 A, 2 -Pole, 120/240 VAC, Plug Mounting, Black

Square D Homeline Circuit Breaker, Mini, Standard, 120/240 VAC, 40 A, 1 ph, 2 Pole, 10 kA Interrupt, Magnetic, Thermal Actuator, Trip Sensitivity: 6 mA, 8 to 2, 8 to 2 AWG Wire, Screw Clamp Terminal, 2 Spaces, Plug Mounting, Black, Dimensions: 3 in L x 2 in W x 3 in H, 104 deg F Operating
Unit: EA
UPC: 785901648000
Model Number: CHOM240CP

• Actuator Type: Magnetic Thermal
• Color: Black
• Current Rating: 40 A
• Dimensions: 3 in L x 2 in W x 3 in H
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 2
• Number Of Spaces: 2
• Operating Temperature: 104 deg F
• Terminal Type: Screw Clamp
• Trip Sensitivity: 6 mA
• Type: Mini Standard
• Voltage Rating: 120/240 VAC
• Wire Size: 8 to 2 8 to 2 AWG
