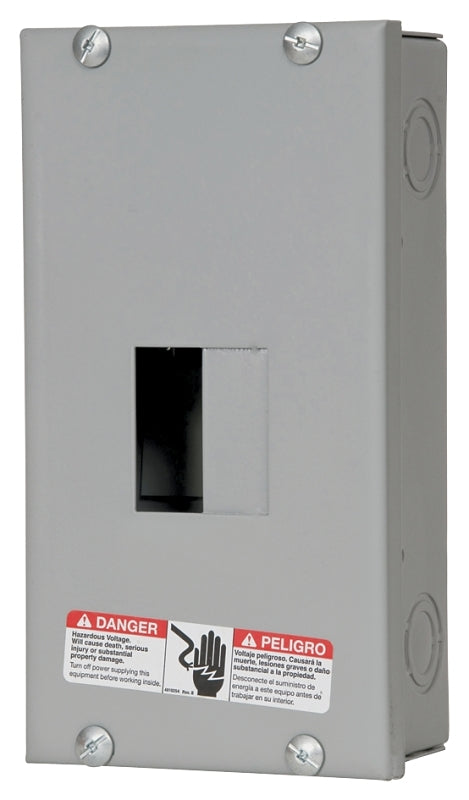

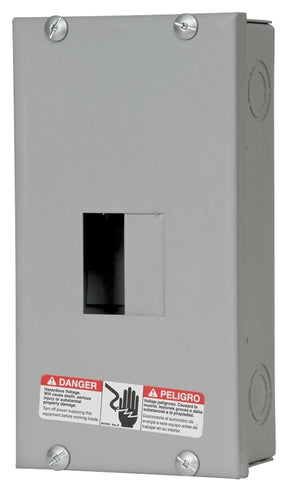

Siemens Murray E E0204ML1060SU Load Center, 60 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 1 Enclosure, Gray

Single phase, 3-wire, solid neutral, 2 spaces and 4 circuits maximum 1-pole, 1 QP breaker maximum 2-pole, 120/240 VAC. 10,000 AIR. One piece plated aluminum bus bar, heavier main bus for cooler operation, direct cable connection to bus bar. Main lugs and neutral on same plane, same drive tool. 100% circuit breaker twist outs. Positive load side circuit breaker hook rail. When used as service equipment, any unused neutral position may be used for equipment grounding. Simple upper pan adjustment after trim is installed for flush leveling. Rotate entire device 180 deg for bottom feed. Gray enamel finish. UL listed, complies fully with NEC and UL requirements for Class CTL. 5-1/8 in x 9-7/8 in x 2-5/8 in.
Unit: EA
UPC: 783643322189
Model Number: E0204ML1060SU

• Breaker/Load Center Type: Main Lug
• Bus Bar Material: Copper
• Color: Gray
• Cover/Lid Type: Flush
• Current Rating: 60 A
• Enclosure Type: NEMA 1
• Interrupt Rating: 100 kA
• Mounting Type: Surface
• Number of Circuits: 4
• Number of Phases: 1
• Number Of Spaces: 2
• Voltage Rating: 120/240 V
• Wiring Configuration: 3-Wire
