Lcm Distributions  |  Our Item #: MORG1627496

Model Number: EQL4100 - UPC : 783643303232

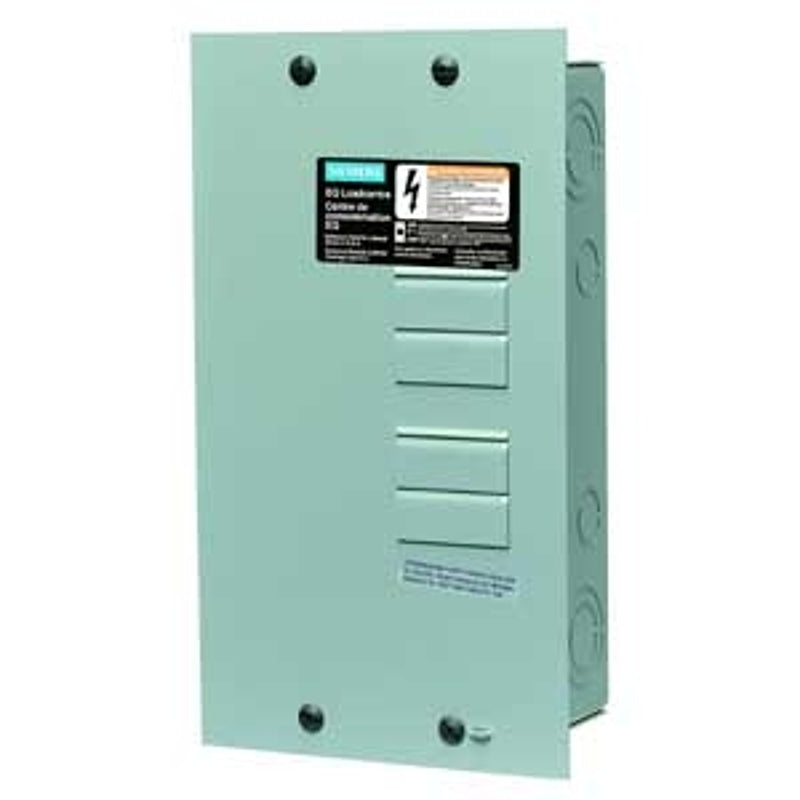

Siemens EQL EQL4100 Load Center, 125 A, 4 -Space, 8 -Circuit, Surface Mounting

Get special pricing! Apply for a business account today.

Apply Now
$141.92 $197.49
Shipping calculated at checkout.
28% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Straight-in wiring design helps reduce the need to bend cables and wires
  • Combination slot/Robertson neutral and ground screws allows for installation flexibility, enabling simple, one-tool installation and speed wiring
  • Both aluminum and copper bus bars meets any specification and job site requirement
  • Extended capacity fully distributed neutrals are easily accessible, reduces installation time and simplifies wiring
  • Indoor loadcenters (type-1) can be mounted for either top or bottom feed for meeting job site requirements and reducing cable waste
  • Suitable for up to 22 kA short circuit current rating
  • Patented INSTA-WIRE neutrals and ground bars allows for faster installation as screws are backed out, ready for wire insertion
  • Combination flush/surface trim in three colors meets any application need
  • Factory-installed ground bars reduces installation time and cost, no need to order additional ground bar kits
  • A flexible extruded plastic base pan makes breaker installation and removal quick and easy

Description
The combination flush/surface trim is flat and plumb in appearance. The Siemens type-3R load Center features industry exclusive gasketed door for improved weatherproof protection. The enclosures and interiors provide 4-1/4 in side wiring gutters for branch circuits. Main bus bars are formed of cold rolled, one-piece tin-plated (acid bath tin, zincate process) aluminum. Copper bus is also available. Main lugs, neutral assemblies and ground bars are suitable for copper or aluminum conductors and comply with the requirements of CSA. The extended capacity fully distributed neutrals give a neutral termination at every breaker position and is mounted, along with bus bars, on a base part made of engineered resin. CSA listed for 60/75 copper wiring applications, load Center main terminals 60/75C copper/aluminum wire, branch breaker terminals 60/75C copper/aluminum wire. All loadcenters are CSA listed under file #13069. Individual circuit breakers are thermal magnetic, quick-make quick-break, trip-free, plug-in construction. All two and three pole breakers are common trip. All circuit breakers are CSA listed under file #14374.
Unit: EA
UPC: 783643303232
Model Number: EQL4100

Additional Information

  • Current Rating: 125 A
  • Interrupt Rating: 100 kA
  • Material: Steel
  • Mounting Type: Surface
  • Number of Circuits: 8
  • Number of Phases: 1
  • Number Of Spaces: 4
  • Voltage Rating: 120/240 V
  • Wiring Configuration: 3-Wire
