Pass & Seymour/Legrand  |  Our Item #: MORG0252551

Model Number: CSB20AC1ICC8 - UPC : 785007043938

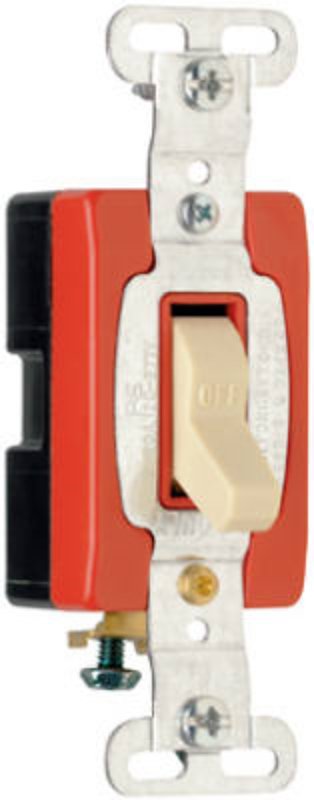

Legrand CSB20AC1ICC8 Series Switch, 1-Poles, Ivory/Red, 20 A, 120/277 VAC, Back Wire, Side Wire Terminal

Get special pricing! Apply for a business account today.

Apply Now
$4.47 $6.19
Shipping calculated at checkout.
28% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • One-piece brass alloy contact arm for reliable electrical performance
  • One-piece steel strap with integral ground is plated for corrosion resistance
  • High-strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
  • Heavy-duty toggle bumpers for smooth and quiet operation
  • Back body made of glass-reinforced nylon, locking support provides resistance to face and back body separation
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life
  • Oversized silver alloy contacts for longer dependable switch life
  • Tri-drive terminal and mounting screws

Description
These switches offer excellent value while meeting federal specification standards. External screw pressure plate back wiring enables fast installation and superior electrical connections. Rugged construction shrugs off hard use and abuse.
Unit: EA
UPC: 785007043938
Model Number: CSB20AC1ICC8

Additional Information

  • Actuator Type: Cam Spring
  • Color: Ivory/Red
  • Contact Material: Silver Cadmium Oxide
  • Current Rating: 20 A
  • Dielectric Strength: 1500 V
  • Dimensions: 1.32 in W x 1.073 in D x 3.281 in H
  • Housing Material: Glass-Reinforced Nylon
  • Number of Poles: 1
  • Temperature Rating: -40 to 115 deg C
  • Terminal Type: Back Wire Side Wire
  • Voltage Rating: 120/277 VAC
