Pass & Seymour/Legrand  |  Our Item #: MORG0252494

Model Number: CS15AC1WCC8 - UPC : 785007043877

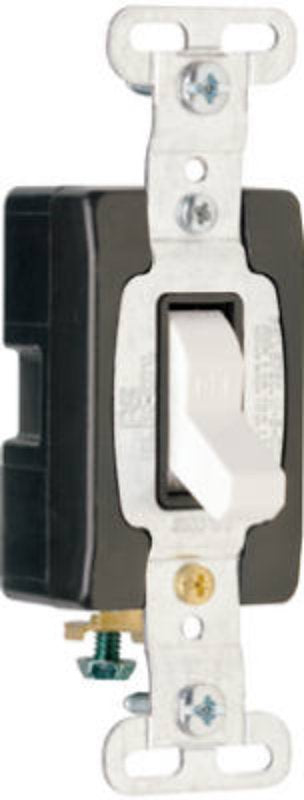

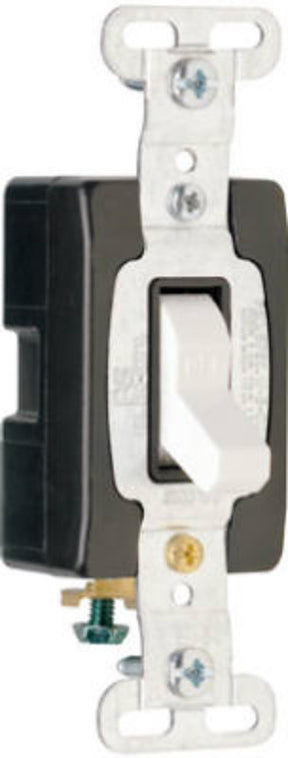

Legrand CS15AC1WCC8 Series Switch, Blue/White, 1-Poles, 15 A, 120/277 VAC, Side Wire Terminal

Get special pricing! Apply for a business account today.

Apply Now
$3.84 $5.35
Shipping calculated at checkout.
28% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • One-piece brass alloy contact arm for reliable electrical performance
  • One-piece steel strap with integral ground is plated for corrosion resistance
  • High-strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
  • Heavy-duty toggle bumpers for smooth and quiet operation
  • Back body made of glass-reinforced nylon, locking support provides resistance to face and back body separation
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life
  • Oversized silver alloy contacts for longer dependable switch life
  • Tri-drive terminal and mounting screws

Description
Like our other commercial switches, these reliable performers feature high-strength polycarbonate toggles, single-piece brass alloy contact arms, nylon covers and heavy-gauge steel straps to withstand hard use and ensure a long service life. Fast make and positive break action minimizes arcing.
Unit: EA
UPC: 785007043877
Model Number: CS15AC1WCC8

Additional Information

  • Actuator Type: Cam Spring
  • Color: Blue/White
  • Contact Material: Silver Cadmium Oxide
  • Current Rating: 15 A
  • Dielectric Strength: 1500 V
  • Dimensions: 1.32 in W x 1.073 in D x 3.281 in H
  • Housing Material: Glass-Reinforced Nylon
  • Number of Poles: 1
  • Temperature Rating: -40 to 115 deg C
  • Terminal Type: Side Wire
  • Voltage Rating: 120/277 VAC
