Pass & Seymour/Legrand  |  Our Item #: MORG0252452

Model Number: CRB5362ICC12 - UPC : 785007857887

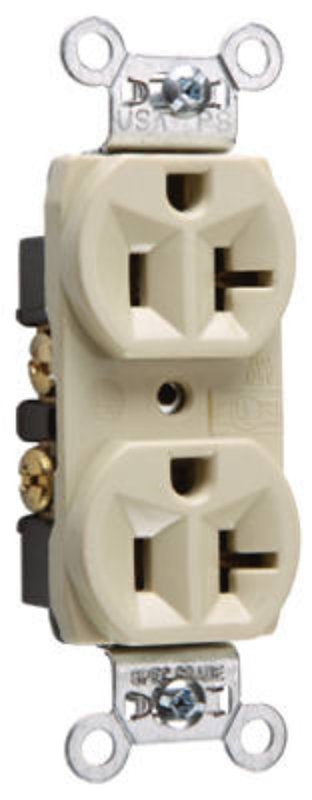

Legrand CRB5362ICC12 Duplex Receptacle, 2 -Pole, 20 A, 125 VAC, Back, Side Wiring, NEMA: 5-20R, Ivory

Get special pricing! Apply for a business account today.

Apply Now
$3.64 $5.09
Shipping calculated at checkout.
28% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
  • 0.032 in thick brass triple-wipe power contacts for reliable plug retention
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
  • Impact-resistant nylon face and thermoplastic back body
  • Eight-hole internal screw pressure plate back wire terminals accept 10 to 14 AWG solid or stranded copper or copper-clad conductors
  • Terminal compartments isolated from each other for positive conductor containment
  • Tri-drive terminal and mounting screws
  • Auto-ground clip assures a positive ground to metal box

Description
These sturdy receptacles offer excellent value. They deliver rugged construction, including impact-resistant nylon faces and corrosion-resistant plated steel straps. Screw-pressure-plate back wiring ensures excellent electrical connections and easy installation.
Unit: EA
UPC: 785007857887
Model Number: CRB5362ICC12

Additional Information

  • Color: Ivory
  • Current Rating: 20 A
  • Dimensions: 1.322 in W x 0.78 in D x 3.281 in H
  • Material: Nylon/Thermoplastic
  • NEMA Configuration: 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -40 to 60 deg C
  • Voltage Rating: 125 VAC
  • Wire Size: 14 to 10 AWG
  • Wiring Type: Back Side
