Pass & Seymour/Legrand  |  Our Item #: MORG0253898

Model Number: ASPD1532M4 - UPC : 785007022919

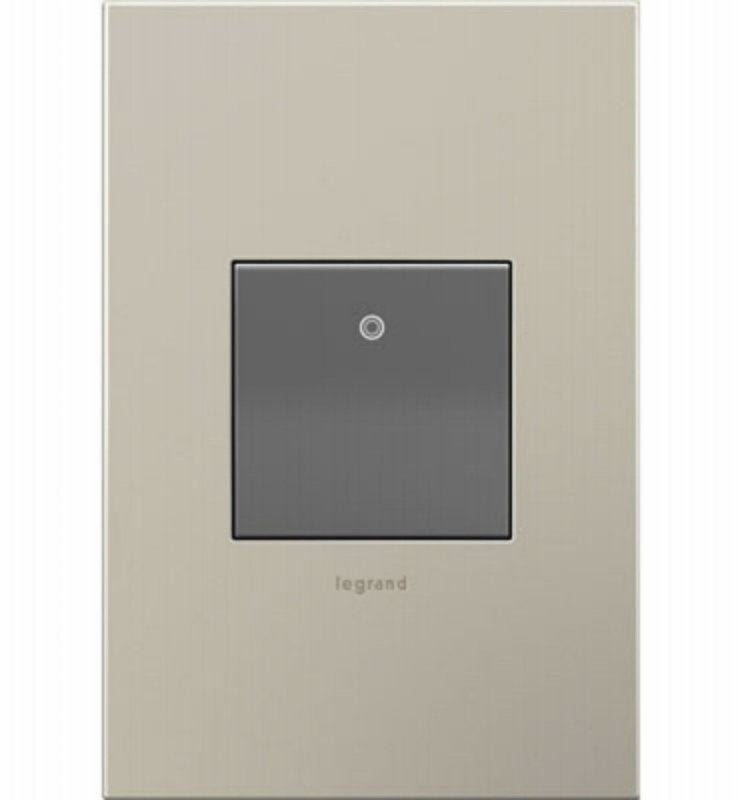

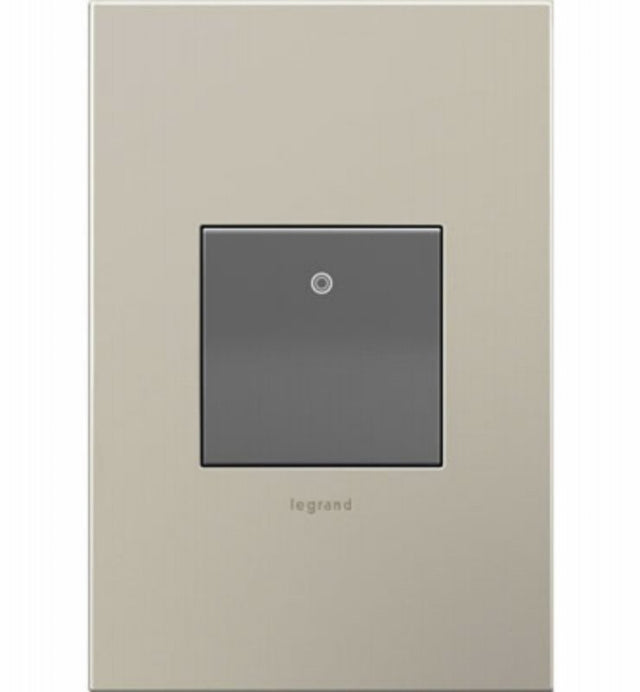

Legrand adorne Series ASPD1532M4 Paddle Switch, 15 A, 120 V, 3-Way, Back Wire Terminal

Get special pricing! Apply for a business account today.

Apply Now
$8.64 $12.05
Shipping calculated at checkout.
28% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Heavy gauge steel frame is grounded via factory installed 12AWG ground lead, device and metal wall plates are self-grounded to frame
  • Device snaps into the frame and self-aligns without any screws
  • Wall plate snaps onto frame no screws required
  • Modular system solves device alignment problems, improving fit and finish in multi-gang installations
  • Back wire terminal screws are recessed into back of body
  • Adorne devices can be installed in any existing standard wall box
  • Use on its own to control a light from one location (single-pole operation) or pair with a second switch or dimmer to control a single light source from two locations (three-way operation)
  • Pair with matching paddle dimmer switch or paddle fan speed control to create a uniform look throughout a room or your entire house
  • 15 min or less to install
  • Fits existing electrical box and does not require new wires for typical installation

Description
Adorne Paddle style switches feature a wide graceful paddle that works with a simple up and down motion, allowing you to turn lights on and off with ease. Integral silver contacts provide long-lasting performance Pair a Locator Status Light with your Paddle switch to add illumination and make it easier to locate in the dark.
Unit: EA
UPC: 785007022919
Model Number: ASPD1532M4

Additional Information

  • Action: Off On
  • Color: Magnesium
  • Contact Configuration: 3-Way
  • Contact Material: Silver
  • Current Rating: 15 A
  • Dielectric Strength: 1500 V
  • Dimensions: 1.77 in L x 1.77 in W x 1.5 in D
  • Housing Material: Polycarbonate
  • Mounting Type: Box
  • Number of Poles: 1
  • Operating Cycles: 30000
  • Temperature Rating: 30 deg C
  • Terminal Type: Back Wire
  • Voltage Rating: 120 V
