Eaton Wiring Devices  |  Our Item #: MORG1453042

Model Number: TR7765BK-KB-L - UPC : 032664767098

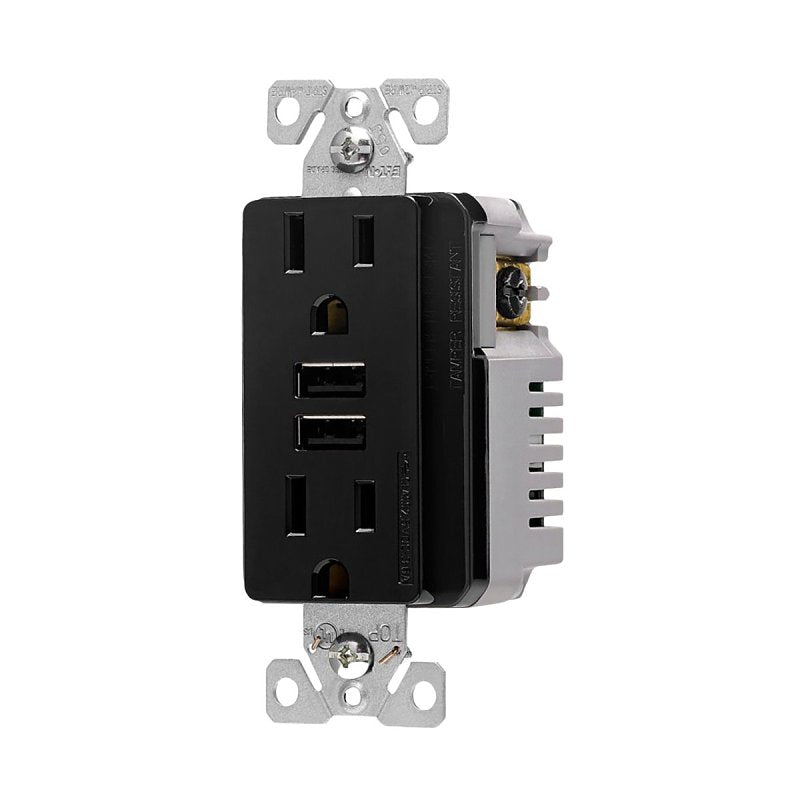

Eaton Wiring Devices TR7765BK-KB-L Combination USB Charger with Duplex Receptacle, 2-Pole, 15 A, 125 V, 2-USB Port, Pack of 4

Get special pricing! Apply for a business account today.

Apply Now
$116.55 $134.20
Shipping calculated at checkout.
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Standard AC duplex receptacle with two USB charging ports rated at 3.6 A
  • Dual USB ports charges most compatible USB electronic devices
  • Tamper-resistant shutters provide compliance with 2017 NEC Article 406.12 that states that all 15 and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
  • Replaces a standard duplex receptacle
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
  • Steel mounting strap is zinc-plated for added corrosion resistance
  • Convenient patented built-in wire strippers speed installation

Description
Eaton Wiring Devices Combination USB Charger with Duplex Receptacle, Tamper-Resistant, 125 V, 15 A, Frequency Rating: 140 kHz, Number of Poles: 2, Number of Wires: 3, Number of USB Ports: 2, USB Type: Type A, Wiring Type: Back, Grounding, Screw Terminal, Side, Wire Size: 14 to 12 AWG, NEMA Configuration: NEMA 5-15R, Operating Temperature: -4 to 140 deg F, Flush Mounting, Thermoplastic, Black, Dimensions: 4.19 in H x 1.3 in W x 1.4 in D
Unit: EA
UPC: 032664767098
Model Number: TR7765BK-KB-L

Additional Information

  • Color: Black
  • Current Rating: 15 A
  • Dimensions: 4.19 in H x 1.3 in W x 1.4 in D
  • Frequency Rating: 140 kHz
  • Material: Thermoplastic
  • Mounting Type: Flush
  • NEMA Configuration: NEMA 5-15R
  • Number of Poles: 2
  • Number of USB Ports: 2
  • Number Of Wires: 3
  • Operating Temperature: -4 to 140 deg F
  • Type: Tamper-Resistant
  • USB Type: Type A
  • Voltage Rating: 125 V
  • Wire Size: 14 to 12 AWG
  • Wiring Type: Back Grounding Screw Terminal Side
